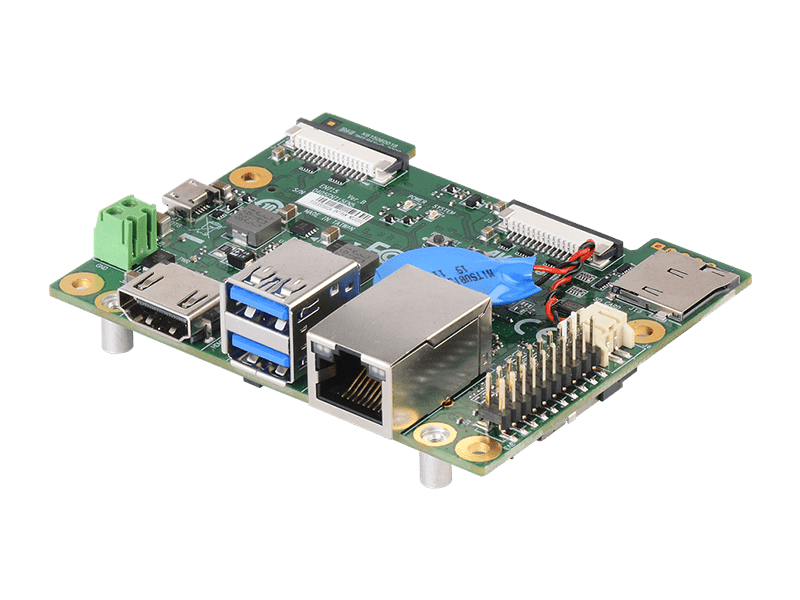

AVerMedia EN715 – Carrier Board
AVerMedia EN715 – Carrier Board
Original price was: ₹25,000.00.₹19,390.00Current price is: ₹19,390.00. (Inc. All Taxes And With GST Invoice For Input Credit)
- Fully support NVIDIA® Jetson Nano™ (Version B01)/Xavier™ NX module
- 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs
- 2x 2 Lane MIPI CSI-2
- 1x 4 Lane MIPI CSI-2
- 20-pin Expansion header
- 1x micro-SD card slot
- Operating temperature: 0°C ~ 70°C
- Dimension: W:87mm x L:70.6mm x H: 27.3mm
- SKU:
Overview
AVerMedia carrier board EN715 is designed for NVIDIA® Jetson Nano™ (Version B01)/ Xavier™ NX module and for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of 70.6mm (L) x 87mm (W) x 27.3mm (H), with four Ø 3.2 mounting holes for the highly reliable field installation.
EN715 can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input, 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins GPIO expansion, 1x Micro SD card slot, and 1x Micro-B USB 2.0 for recovery. It also comes with a single-mold PCB terminal block module for the easy power connection.
With the compact dimensions, design for reliable field installation, and the rich I/O functions, EN715 is the best cost-effective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.
Specifications
| Model | EN715 |
|---|---|
| Type | Carrier Board |
| NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Nano™ (Version B01)/Xavier™ NX module |
| Networking | 1x GbE RJ-45 |
| Display Output | 3840 x 2160 at 60Hz |
| Temperature | Operating temperature 0°C~70°C
Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
| MIPI Camera Inputs | • 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible on NVIDIA® Jetson Nano™ Developer Kit)
• 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector |
| USB | 1x USB 2.0 Micro-B for recovery
2x USB 3.0 Type-A |
| Storage | 1x micro-SD card slot |
| Expansion Header | 20 pins: 2x I2C, 1x UART, 9x GPIOs |
| Input Power | 3.5mm Screw Terminal; 9V~19V is recommended. |
| Buttons | Power and Recovery |
| RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
| PCB/Electronics Mechanical Info | W: 87mm x L: 70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”)
Weight: 70g |
| Certifications | CE, FCC, KC |
| Optional Accessories | Specs |
|---|---|
| NVIDIA® Jetson Series | NVIDIA® Jetson Nano™ (Version B01)/Xavier™ NX module |
| Power Adaptor | 12V, 5A |
| Power Cord | US/JP/EU/UK/TW |
| Fan Module | Heat sink with fan |
| MIPI Camera | For 15 pin MIPI connector:
1.raspberry pi camera v2 2.Manufacturer: APPRO.PHO B-04: IMX179 (8M) MIPI, 1080P (30fps) C-04: IMX290 (2M) MIPI, 1080P (30fps) C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps) For 36 pin MIPI connector: 1.Manufacturer: APPRO.PHO B-03: IMX334 (4K) MIPI, 4K (30fps) A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps) |
