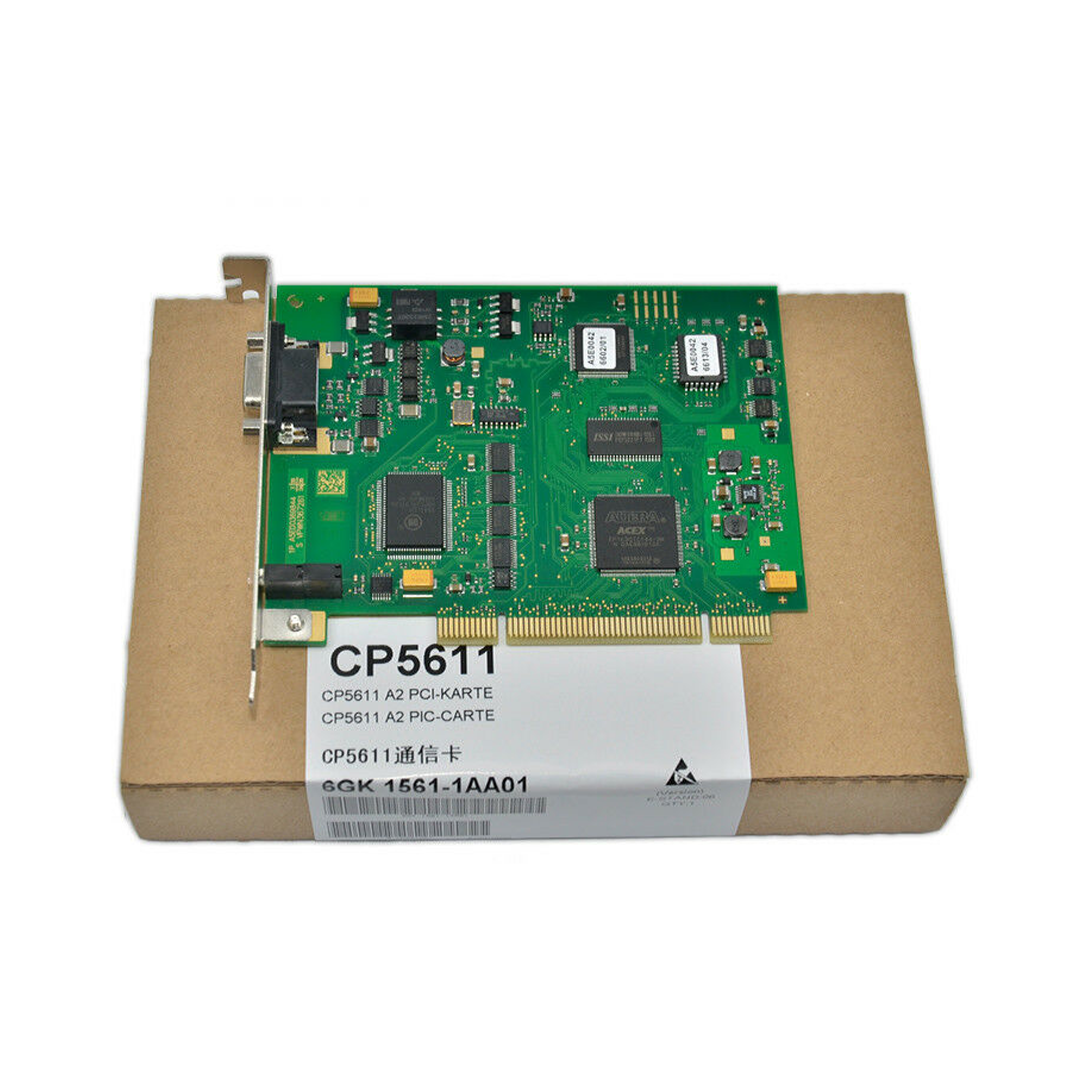

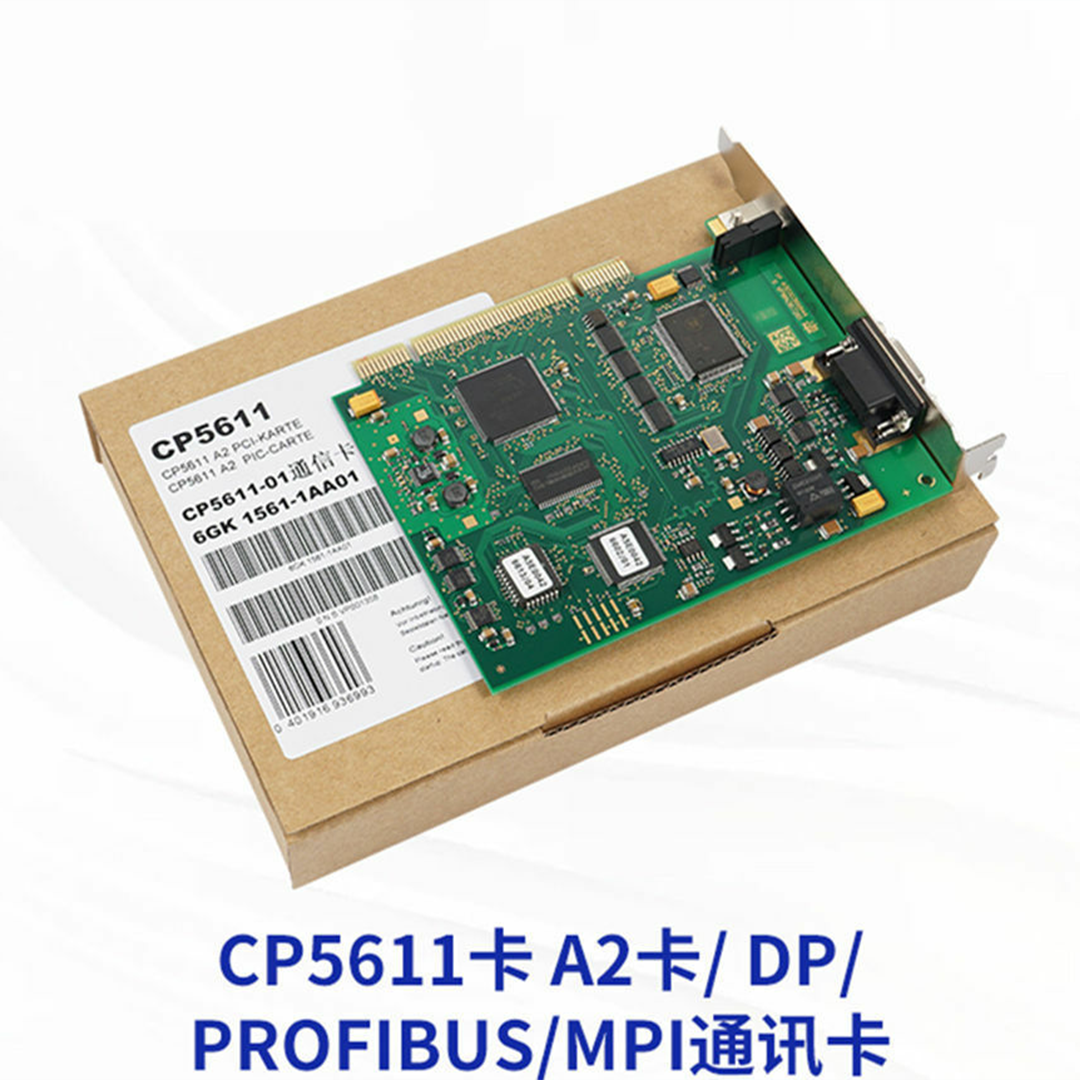

Overview

CP5611 communication card for industrial applications for the isolated design,  RS485 port in an increase of anti-lightning surge protection circuit and  over-current protection, the use of on-chip industrial apply to a wide  temperature range for the realization of PG or PC with SIMATIC Network between  PROFIBUS DP/MPI/PPI communications connection.

Communication  services:

• PROFIBUS-DP master grade 1 and 2
• PROFIBUS-DP slave and SOFTNET-DP slave
• MPI/PPI communications
• PG/OP communication
• SOFTNET-S7 and S7 for communications
• And SOFTNET-DP or SOFTNET-S7 for S5 compatible communications (FDL-based  interface SEND / RECEIVE function)

CP5611 apply to  the following software:

• STEP7 V.52 and above
• SOFTNET-S7
• SOFTNET-DP
• SOFTNET-DP slave
• COM PROFIVUS V3.3 and above
• STEP 7-Micro/WIN V3.1 and above
• ProTool, ProToo/Pro
• NCMPC

Technical  specifications:

• Transfer rate: 9.6Kbps ~ 12Mbps, corresponding to the maximum distance  communication standard in line with the PROFIBUS

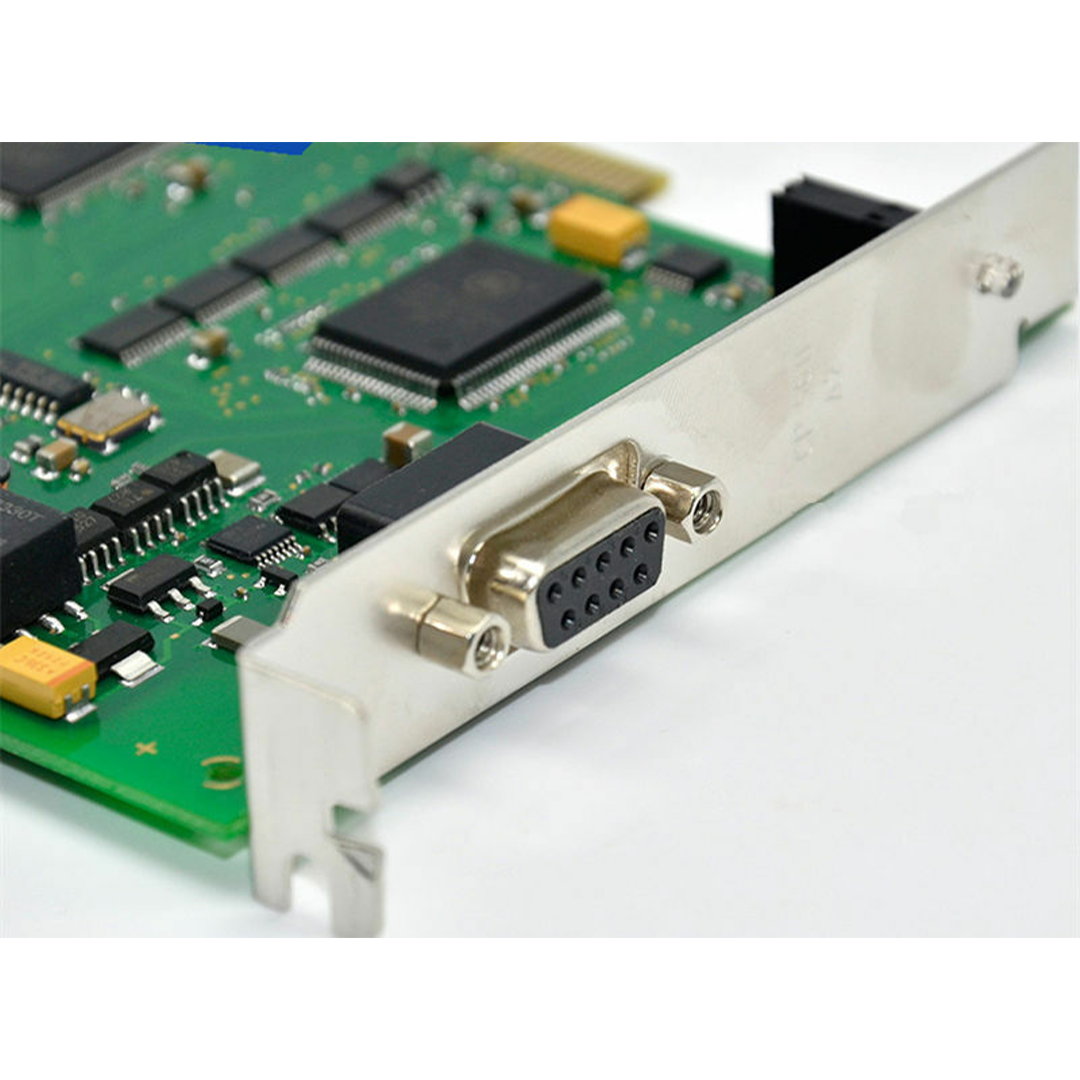

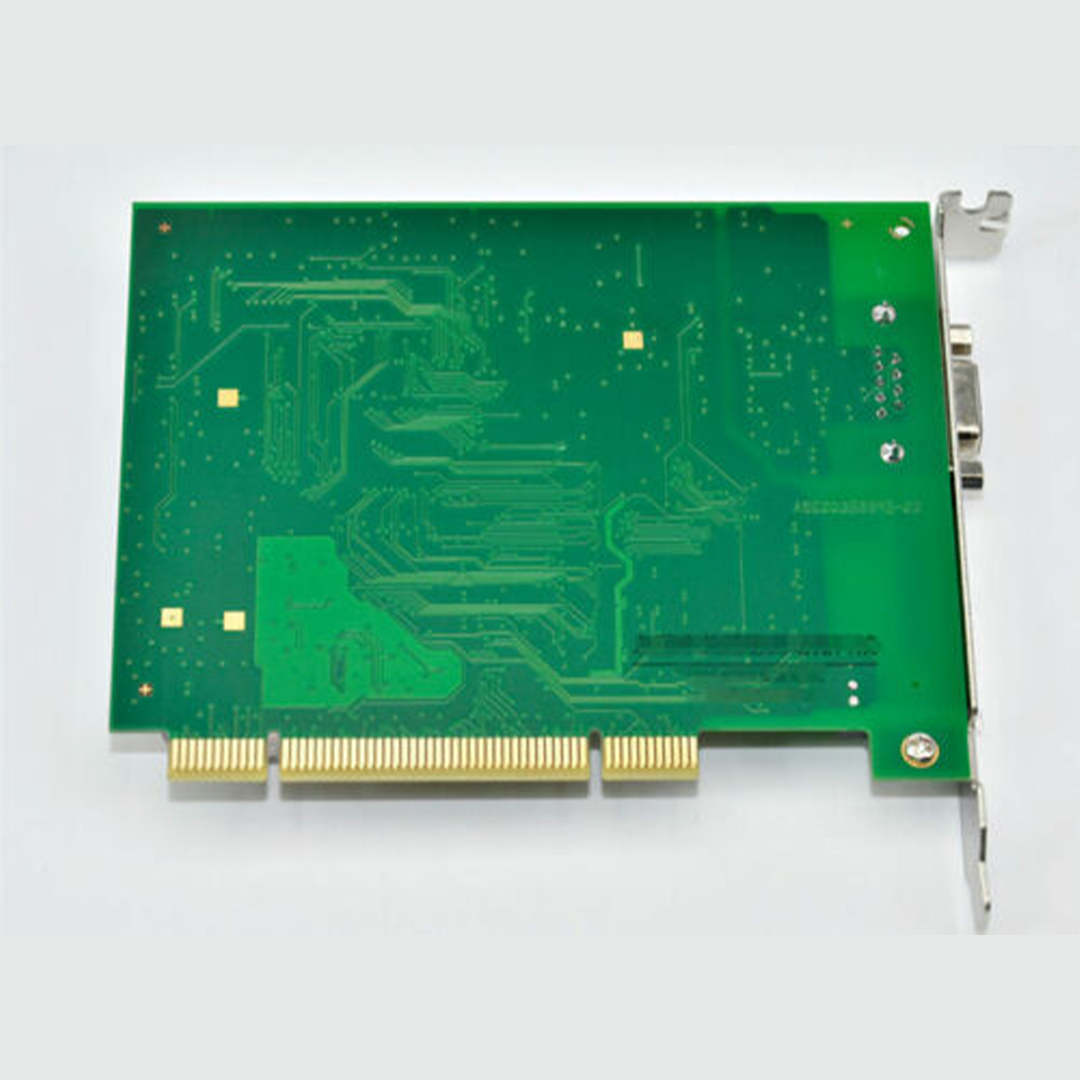

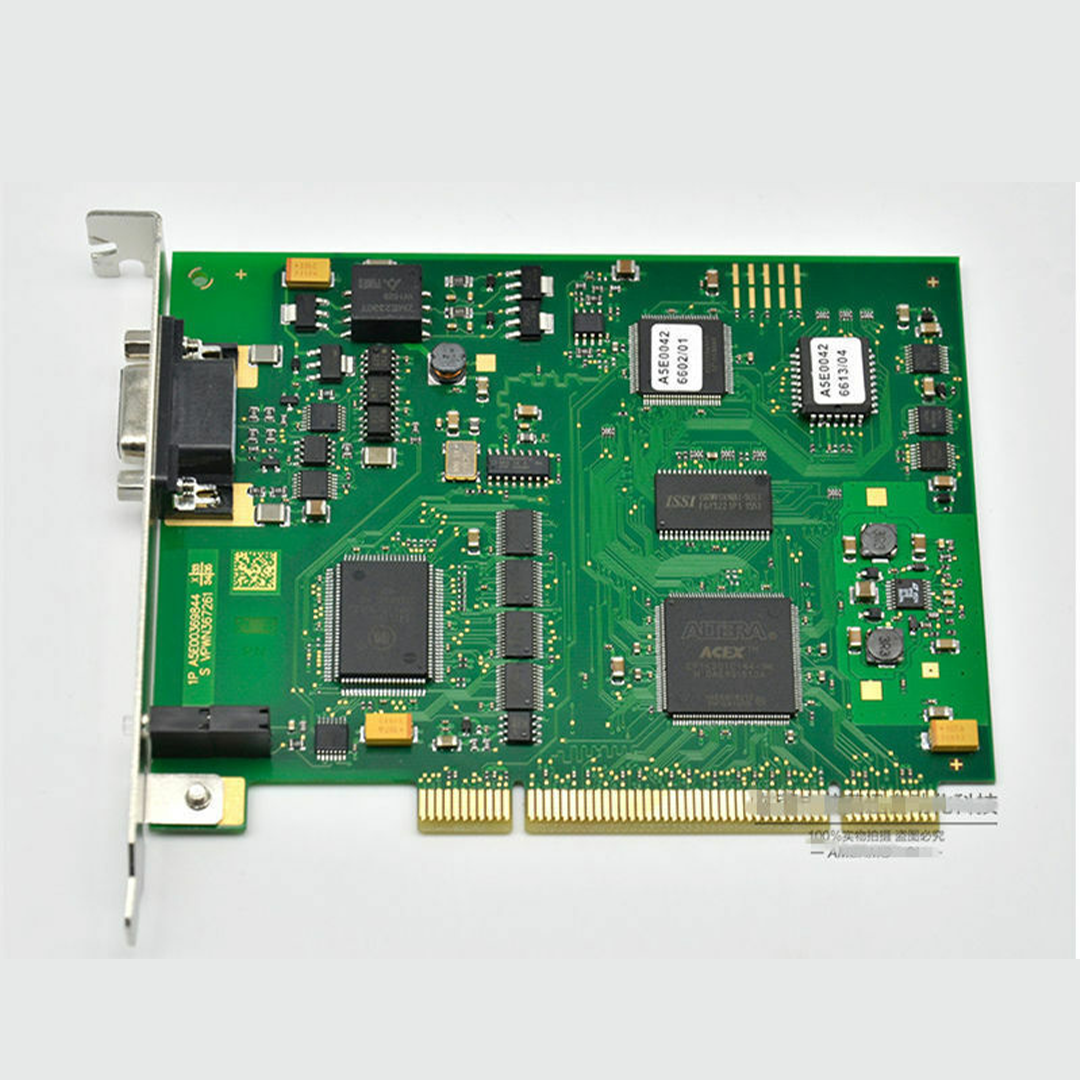

• Interface: connecting PROFIBUS/MPI/PPI, the isolation of the 9-pin Sub-D  socket
• Isolation Voltage: 1000VDC
• RS485 port with anti-lightning surge protectors, repeatability surge  capacity: Ipp = 100A (10/700us, 4KV)
• Standard: ITU-TK20/21, VDE 0433. ± 15KV ESD (ESD) protection
• Since the resumption of over-current protection: RS485 port can withstand up  to 60V voltage caused by the sustained over-current
• Link PG/PC: PCI2.1 standard slot
• Standard voltage: +5 VDC
• Power: 2.0W
• Operating temperature: 0 ~ + 70
• Size (width × high) (mm): 102 × 130
• Weight: 100g
