Emotiv Flex 2.0 Gel Sensor Kit
Emotiv Flex 2.0 Gel Sensor Kit
₹383,999.00 – ₹1,611,999.00 (Inc. All Taxes And With GST Input Credit)
32-CHANNEL WIRELESS EEG HEAD CAP SYSTEM
High-Density Gel EEG, Unlimited Research Flexibility
Delve Deeper into the Intricacies of the Human Brain with EMOTIV’s High-Density Wireless Gel EEG Head Cap System
- SKU:
Re-Engineered for Advanced Precision & Usability
FLEX features the latest Bluetooth(R) 5.2 chip and advanced antenna design, transmitting contextual EEG data with greater precision.
256 SPS Per Channel
Higher temporal resolution & enhanced signal fidelity.
Up to 64Hz Motion Sensor Data
Transmit full-resolution motion data.
16-bit Channel Data
Uncompressed, granular data.
No Slew Rate Limits
Time-locked EEG, ECG, EMG & EOG signals.
Advanced Antenna
Provides a stable connection & extended research capabilities.
Power LED
Easily identify FLEX’s battery life.
USB-C Charging Port & Power Cable
For faster charging.
SOFTWARE LICENSING AND COMPATIBILITY
Every purchase includes the EMOTIV Pro Lite software.
Investigate all available upgrade possibilities.
32-Channel EEG For Whole-Brain Sensing
Flexible Sensor Placement
on the 10-20 System
Optimal placement for capturing granular EEG data.
Refillable Research-Grade
Saline Sensors
Maintain consistent sensor conductivity without
interrupting your studies.
Battery Status
Initial 10-second battery status display.
Up to 6 hours of battery life.
Variety of Flex Cap Sizes
Choice of 54 cm, 56cm, or 58cm cap sizes for comfort & conformity.
Bluetooth 5.2
Enhanced real-time data transmission.

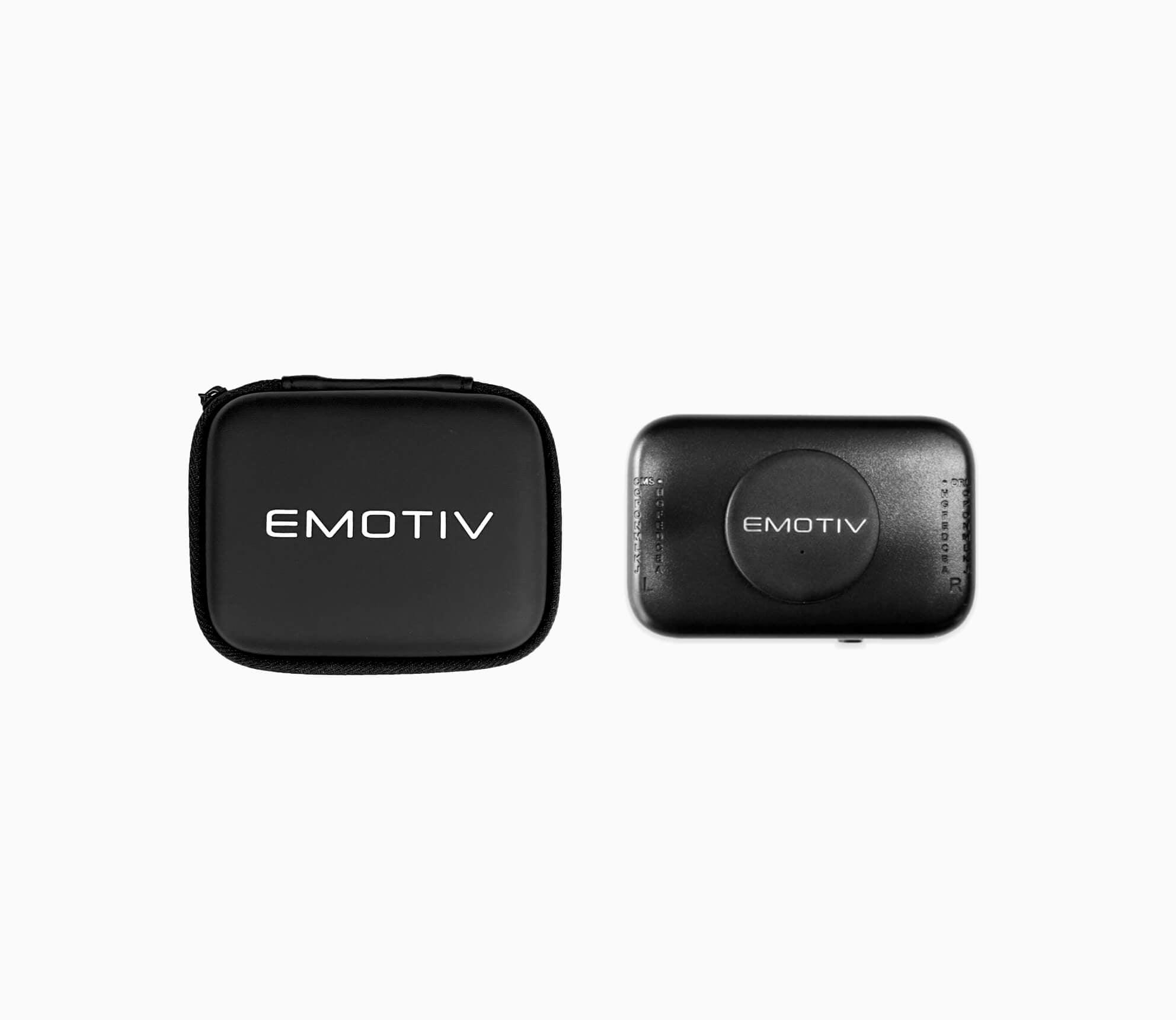

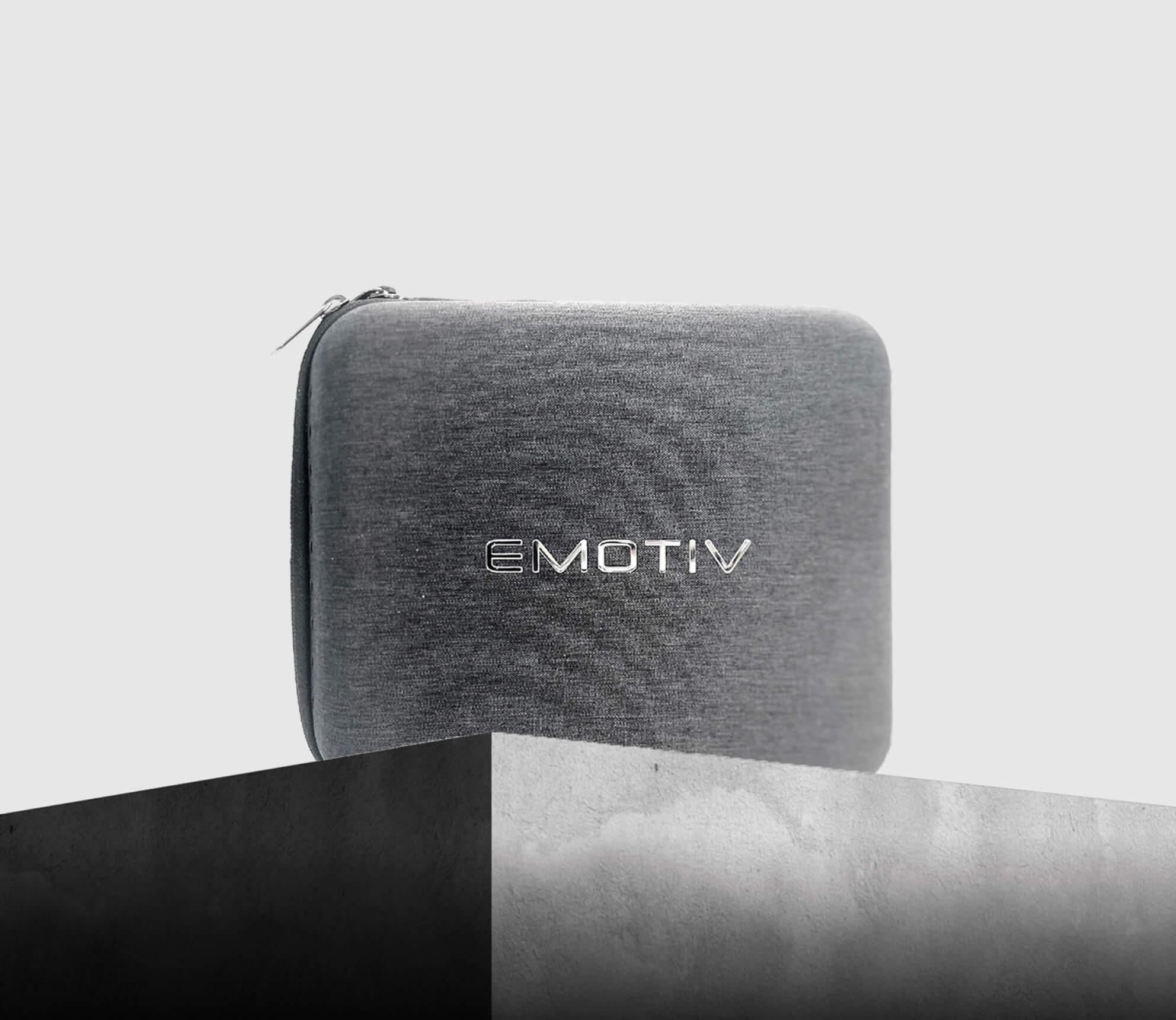

Smart Storage
The included travel case is the smart solution for storing and transporting your FLEX. Made from durable EVA foam, the case provides protection and organization for FLEX and its accessories. A dedicated compartment for your Flex Cap allows airflow keeping it in optimal condition.
Flex Your Research Capabilities
Unlike traditional EEG head cap systems that keep participants tethered in a lab, Flex’s wireless controller allows you to conduct contextual brain research.
High-Density Brain Monitoring in a Wireless EEG Device

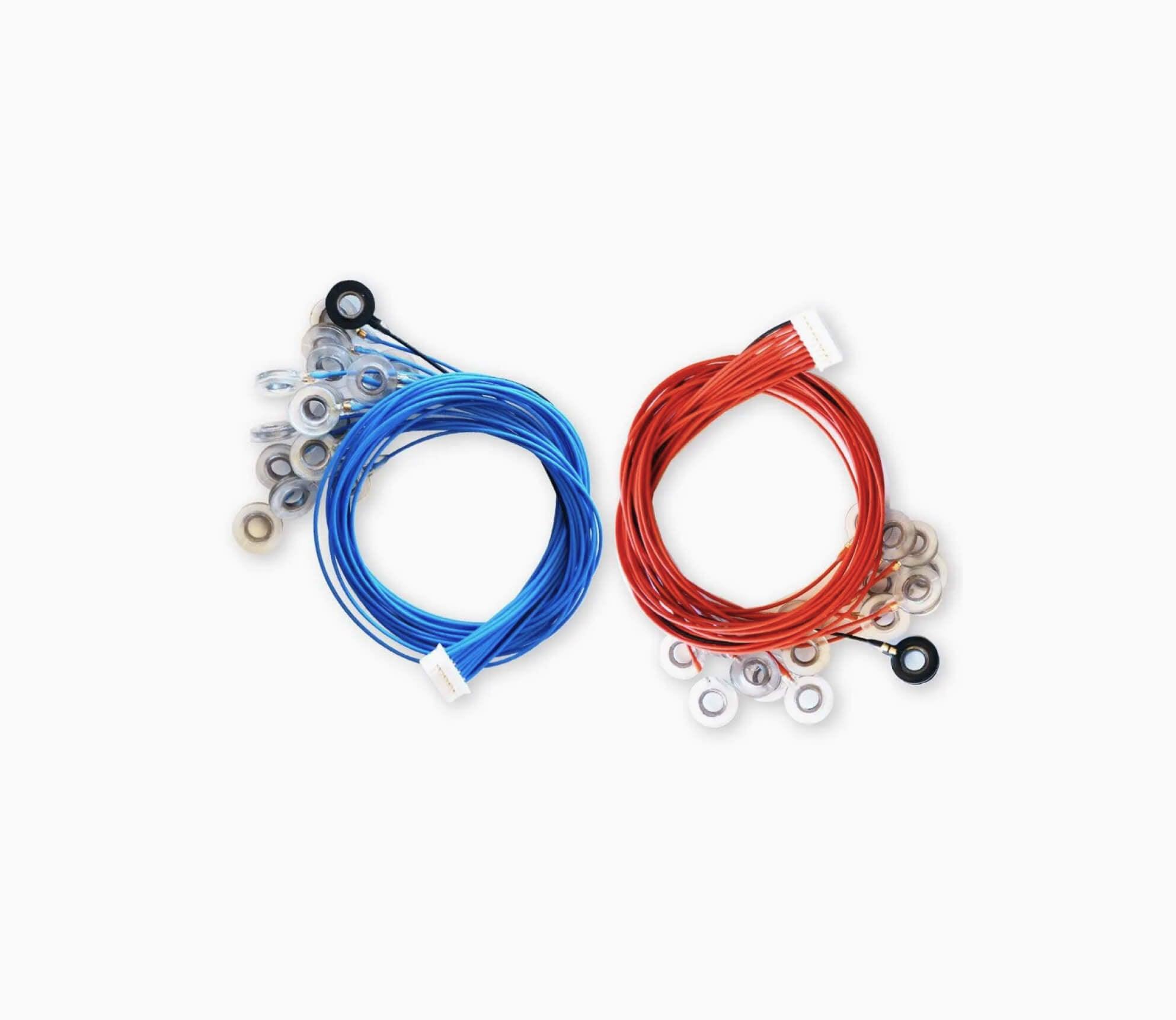

Research-Grade EEG Sensors
32 sintered silver-silver chloride sensors.
9-Axis Motion Sensor
Accurately detects head movements.
Connects Seamlessly with PRO
128Hz and 256Hz EEG data transmission in a wireless device.
Optimal Spatial Resolution
Flex Cap’s 74 openings allow you to pinpoint a subject’s brain activity with greater accuracy.
Common-Mode Noise Rejection
Captures high-quality, reproducible data.

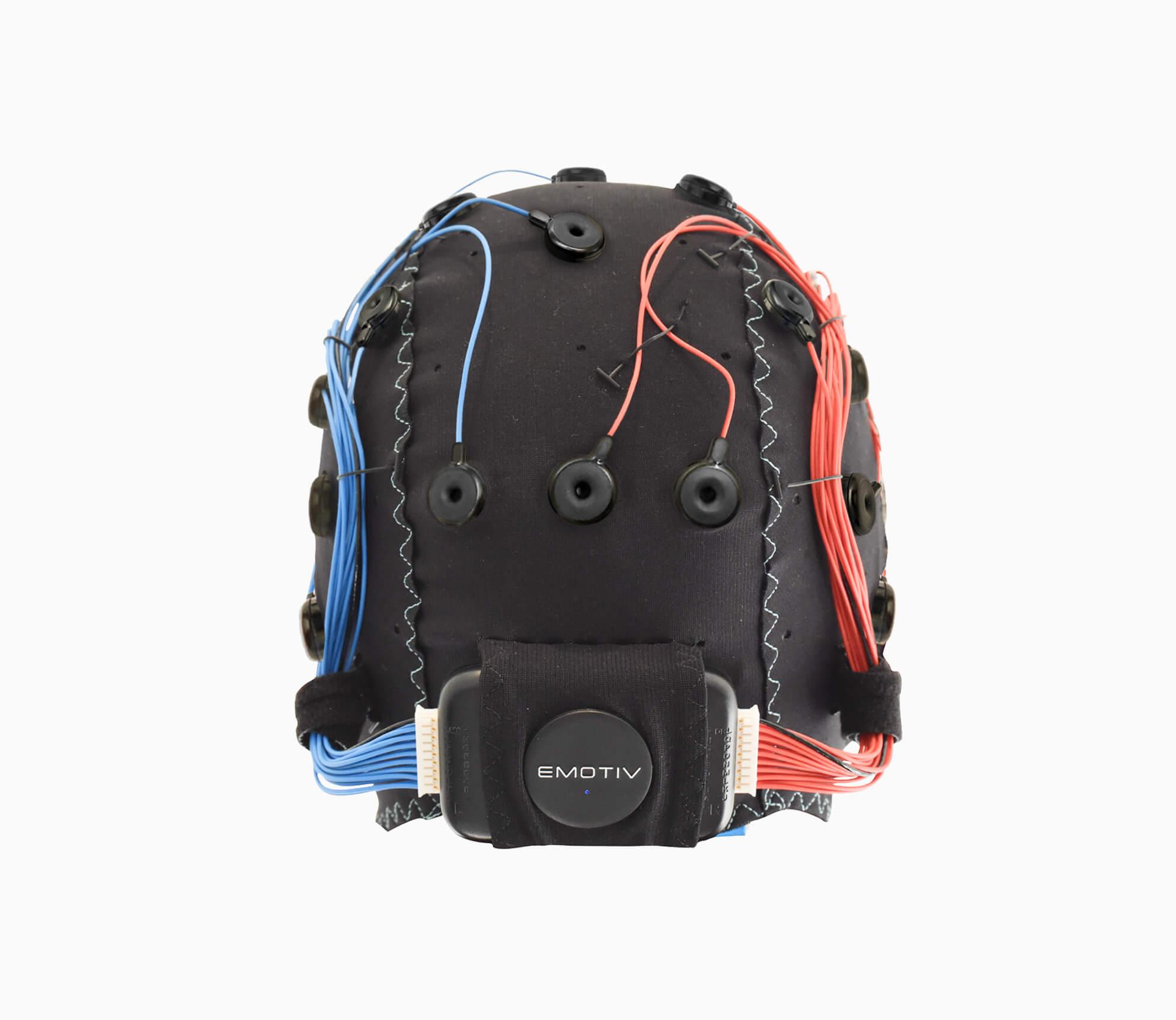

Flexible Controller Positioning
Position the FLEX controller at the top or rear of the head for optimal comfort.
Support
EEG sensors
Up to 32 channels: configurable
2 references: CMS/DRL configurable in any 10-20 location or on ears (compatible ear clips for sensors included)
Available data: raw EEG and frequency band data. Requires PRO License for use.
–
EEG signals
Sampling method: Sequential sampling, dual ADCs
Sampling rate: 2048 Hz internal downsampled to 256SPS.
Motion Resolution: 16 bits with 1 LSB = 0.51μV
Bandwidth: 0.16 – 43Hz, digital notch filters at 50Hz and 60Hz
Dynamic range (input referred): 8400 μV(pp)
Coupling mode: AC coupled
No slew rate limits: Time-locked EEG, ECG, EMG & EOG signals
Coupling mode: AC coupled
No slew rate limits: Time-locked EEG, ECG, EMG & EOG signals
Electrode count: 32 recording electrodes, 2 reference electrodes
Sensor material: sintered silver-silver chloride, compatible with gel
Size: profile height – 3.5 mm; central opening diameter – 6 mm
Wire length: 36 cm
Manufacturer: EasyCap
–
Motion sensors*
IMU part: ICM-20948
Quaternions: normalized, 4D
Accelerometer: 3-axis +/-8g
Magnetometer: 3-axis +/112 gauss
Transmit full resolution motion data: Up to 64Hz motion sensor data
*Software support for motion data coming soon.

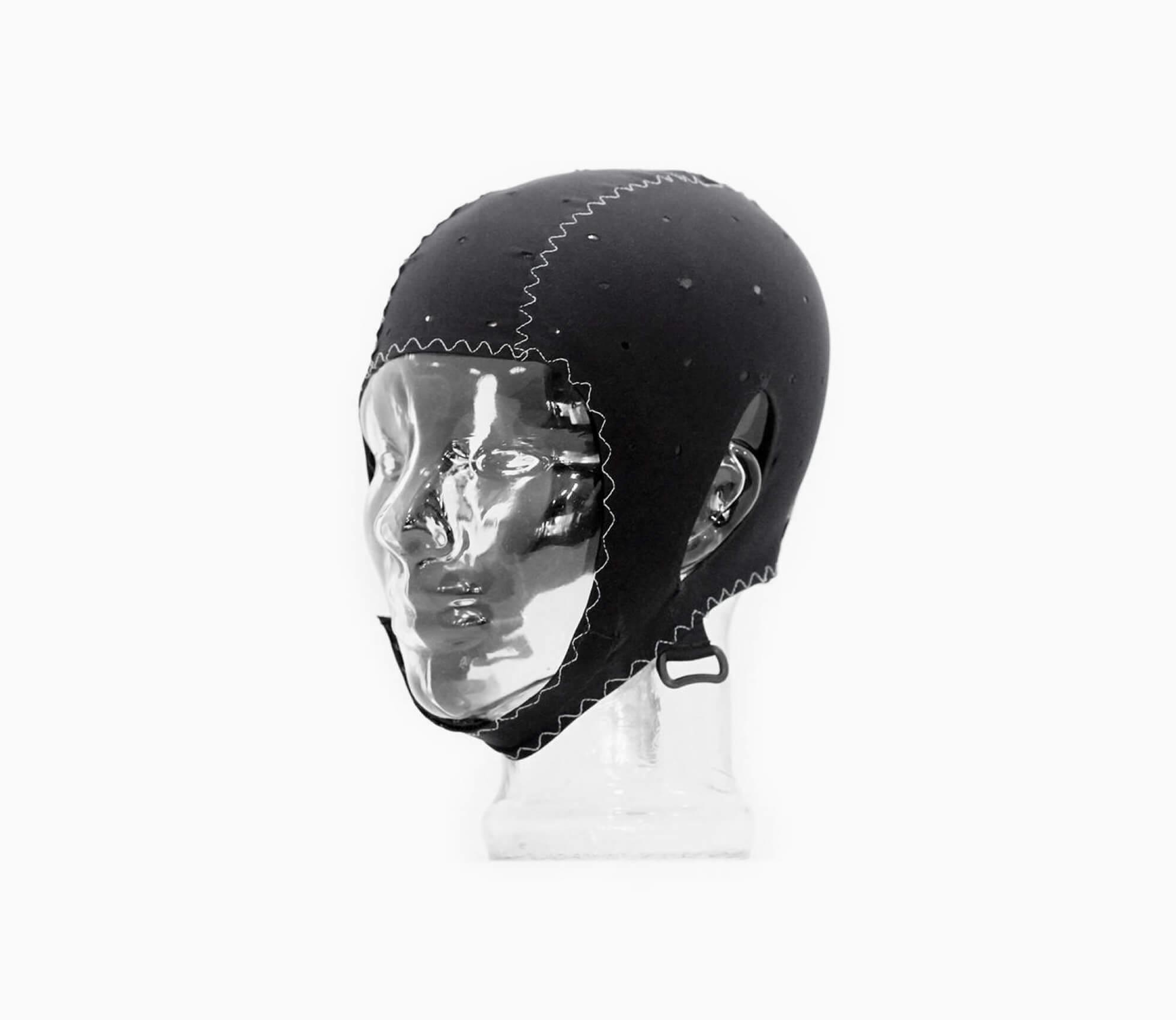

Cap
Available sizes: 54 cm, 56 cm, 58 cm
Variety of Flex Cap Sizes: Comfort & conformity for optimal EEG data
Openings: 74 in the standard 10-20 positions
Pockets for control box: At approximately Iz (for awake studies) and Cz (for sleep studies)
Manufacturer: EasyCap
–
Connectivity
Proprietary USB receiver (included): 2.4GHz band
USB 2.0+ (only available with EMOTIV Extender)
Micro USB-C port & power cable (included): for faster charging
Bluetooth 5.2: Enhanced real-time data transmission
–
Power
Battery: Internal Lithium Polymer battery 595mAh
Battery life: up to 6 hours
Power LED: Easily identify Flex Controller’s battery life a short description for this tabbed section
Notice: Not supported on Ubuntu & Raspberry Pi
| Cap Size | 54CM, 56CM, 58CM |
|---|---|
| EmotivPRO License | No, Standard Annually, Standard 3 Years, Standard 5 Years, Standard Team Annually, Standard Team 3 Years, Standard Team 5 Years |
