Optical

Display Device Type

Si-OLED (Silicon-Organic Light-Emitting Diode)

Brightness

1000 cd/sq. m (Max)

Contrast

5000,000:1

Transmittance

Headset 40%, Shade 2%

Display Size

0.453″ (1.15cm) Wide Panel

Aspect Ratio

16:9

Pixel Number

2,073,600 (1920 x 1080) RGB

Refresh Rate

60 Hz

Field of View

34 Degree (diagonal)

Screen Size (Projected Distance)

120″ (304.8cm) at 16.40′ (5m)

Color Reproduction

24-bit color (16.77 million colors)

Sensors

Compass

Yes

Gyroscope

Yes

Accelerometer

Yes

Ambient Light Sensor

Yes

Data Transfer Method

USB 2.0, Sensor Class HID1.11

Camera

Pixel Number

8 megapixel

Resolution and Frame Rate

8M (3264 x 2448) @ 30/10/1 fps, 4M (2560 x 1440) @ 30/20/2 fps, 1920 x 1080 @ 30/5 fps, 1600 x 1200 @ 30/5 fps, 1280 x 720 @ 60/30/10 fps, 640 x 480 @ 60/30 fps

Focus Type

Auto

Exposure Type

Auto

White Balance Type

Auto

Depth of Field

110 mm to Infinity

Field of View

Horizontal 60 Degree over, vertical 45 Degree over

Data Transfer Method

USB 2.0, Audio UAC, Video UVC 1.1

Supported Video Format

H.264, MJPG, YUV

Supported Image Format

JPEG

Video Input

USB

Type-C

Video I/F

DisplayPort Alternate Mode (DP Alt Mode)

Display Port Version

1.2

Resolution

1080p/60 Hz

EDID

Supported

HDCP

Supported

Data Transfer Method

USB 2.0, Device Class HID 1.11, Data Type Sensor Data, Headset API Control, Firmware Update

Audio

Audio

3.5 mm audio jack (CTIA standard earphones with microphone compatibility)
Dual noise-reduction microphone, speaker

Audio Output

80 dBA, 92 dBA (when using Moverio Link/Moverio Link Pro)

General

Temperature (Operating)

41 Degree F – 95 Degree F (5 Degree C – 35 Degree C)

Humidity (Operating)

20% – 80%

Temperature (Storage)

14 Degree F – 140 Degree F (-10 Degree C – 60 Degree C)

USB Power Delivery

Rev. 3.0, Input (5.0 V) (1.5 A)

ANSI Shade

ANSI Z87.1 safety-glass compliant

Dust-Resistant and Waterproof

IP52 (except for USB port)

Drop Resistance

MIL-STD-810H Drop Test Compliant

Eco Features

Eco Features

RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay Transport Partner

Physical

Dimensions (W x D x H)

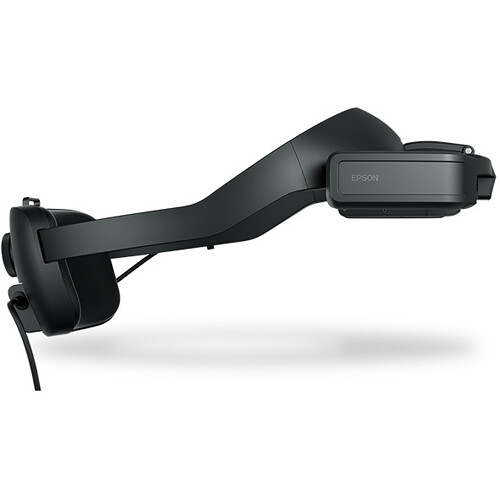

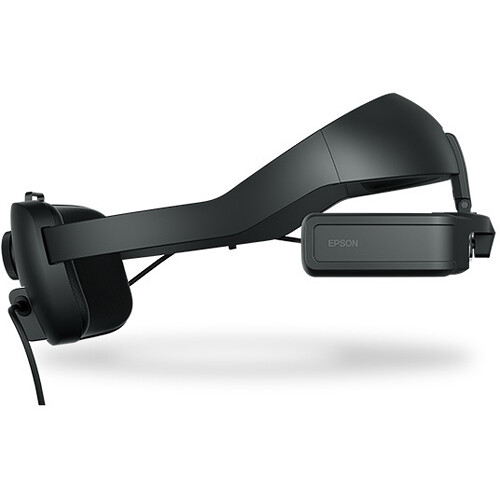

Headset: 7.8 x 11.4 x 2.2″ (200 x 290 x 57mm)

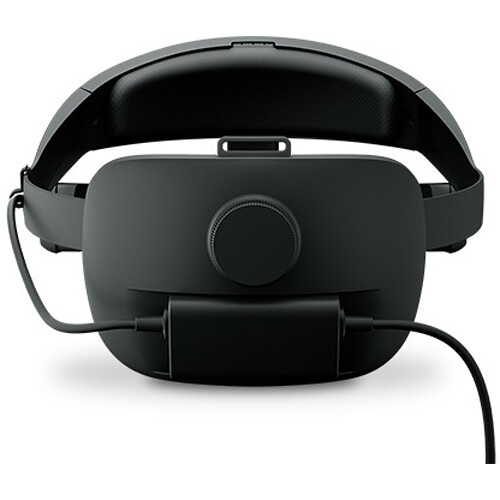

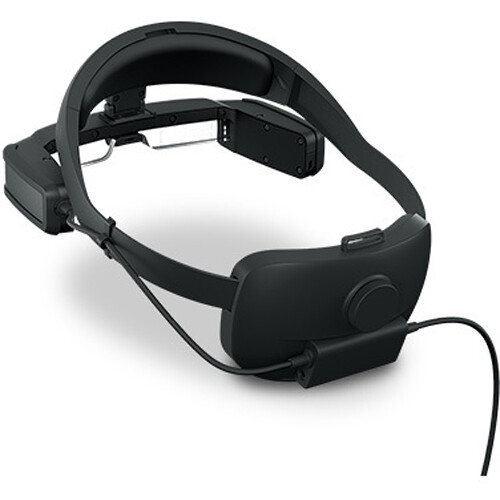

Headband: 7.6 x 10.9 x 4.7″ (195 x 279 x 120mm)

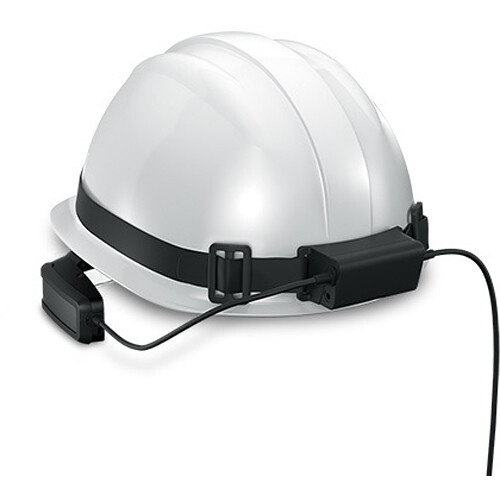

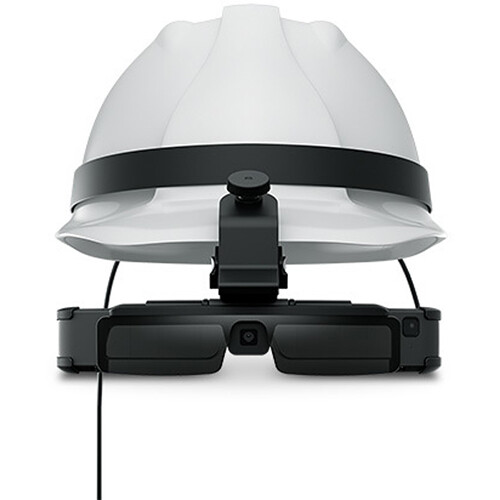

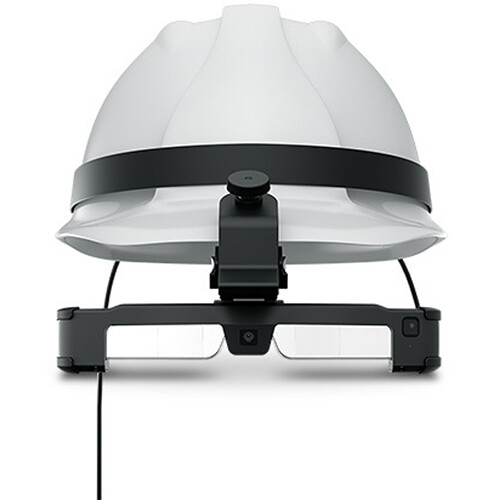

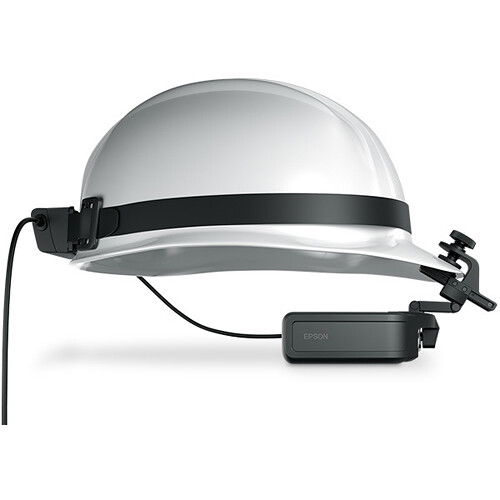

Helmet Clip: 1.4 x 2.4 x 2.1″ (36 x 62 x 54mm)

Weight

Headset: 6.52 oz (185g) (Without shade, harness and IF box) (Approx.)
Headband: 19.22 oz (545g) (Headset and headband with shade, top strap, harness and IF box) (Approx.)
9.17 oz (260g) (Without top strap and clip) (Approx.)
2.99 oz (85g) (Without rubber band and clip) (Approx.)

Other

Supported 3D Format

Side-by-Side Format (using the Utility application software)

Firmware Update Supported

Requires connecting to PC by USB Type-C

Supported OS for Host Device

(USB Type Connection) Windows 10 (depends on supported status of USB Type-C on connected device), Android 8.0 or later
