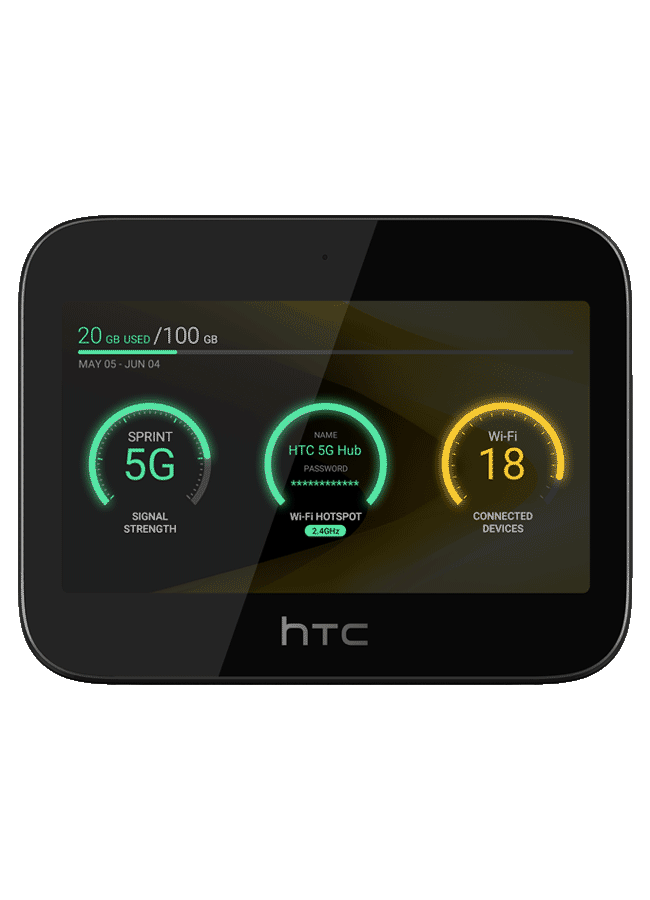

HTC 5G HUB Specification

Capacitive touch screen

HD (720 x 1280 pixels)

Connections expandable through Gigabit Ethernet

Extended memory: microSD™ (up to 512GB)

Flex Storage

Always listening

Wi-Fi

802.11 a/b/g/n/ac/ad

Up to 20 Wi-Fi connections

Battery management

Charging

-DC Charging (12V/2.5A)

-USB-C (QC 3.0 & PD 9V/2A)

Support up to 2.63 Gbps downlink. Uplink 287 Mbps

4G LTE (US)

· FDD: Bands 2, 3, 4, 5, 7, 8, 12, 13, 25, 26, 66, 71

· TDD: Band 41

5G NR Band: n41

4G LTE (Australia)

· FDD: Bands 1, 2, 3, 4, 5, 7, 8, 12, 20, 28, 66

· TDD: Bands 38, 41

5G NR Band: n78

1.Thickness of device is measured at the edge of device. Thickness may be different at different parts of device.

2.All units of measurement may vary slightly according to manufacturing tolerance.

3.Platform may be different after software update.

4.Available storage is less due to software. Available storage is subject to change based on software updates and apps usage.

Extended memory limited to available microSD card size.

5.20 connections are connected through Wi-Fi Hotspot. 802.11 ad Hotspot has maximum support of 4 connections.

6.Battery life varies by use and settings. Usage, environment conditions, network connectivity and other factors may vary the actual outcome.

7.Network bands and actual upload/download speed vary based on mobile operator and location. 5G NR and 4G LTE only available in select countries and locations.
