We are very excited to work with IDUN Technologies to offer this affordable, high-quality biosensing kit to our community!

The Dryode™ Alpha offers waterproof, research-grade signal quality with the ease of a consumer product. This state-of-the-art flexible dry electrode is designed for biopotential data acquisition (ECG, EMG, and EEG). Connect Dryodes to any OpenBCI board (sold separately) using OpenBCI snap electrode cables, as well as standard snap electrode cables.

Advantages of the Dryode™:

• Cost-effective and reusable
• Uniquely flexible polymer ensures stable contact with skin
• Biocompatible and hypoallergenic
• Material that moves with you
• Reduced motion and noise artifacts
• Waterproof

Scientifically Validated for EEG, EMG and ECG

The Dryode™ material resulted from extensive research in collaboration with ETH Zurich. The paper titled, “Skin Conformal Polymer Electrodes for Clinical ECG and EEG Recordings” was published in the Journal of Advanced Healthcare Materials.

The Mobile Health Systems Lab of ETH Zurich published a paper featuring the Dryode™ Alpha for sleep EEG research. “A Protocol for Comparing Dry and Wet EEG Electrodes During Sleep” was accepted to the Frontiers of Neuroscience, Neural Technology in June 2020.

About IDUN Technologies

Preparation-free and skin compliant biopotential electrodes with recording quality enable wearables for biosensing and the future Internet of Humans. The Swiss ETH Spin-off aims to be the best interface between the user’s skin and wearable devices to connect humans in everyday life. The Dryode™ Alpha is the first product in a development pipeline advancing towards continuous body monitoring for activity monitoring, well-being, and human-computer interfaces.

Technical Specifications:

• Electrode contact area is 20 mm (0.78 in) in diameter
• Total contact area is 40 mm (1.57 in) by 55 mm (2.16 in)
• Impedance range ~3.2-5.2 kOhm, as shown in the product graph
• Datasheet

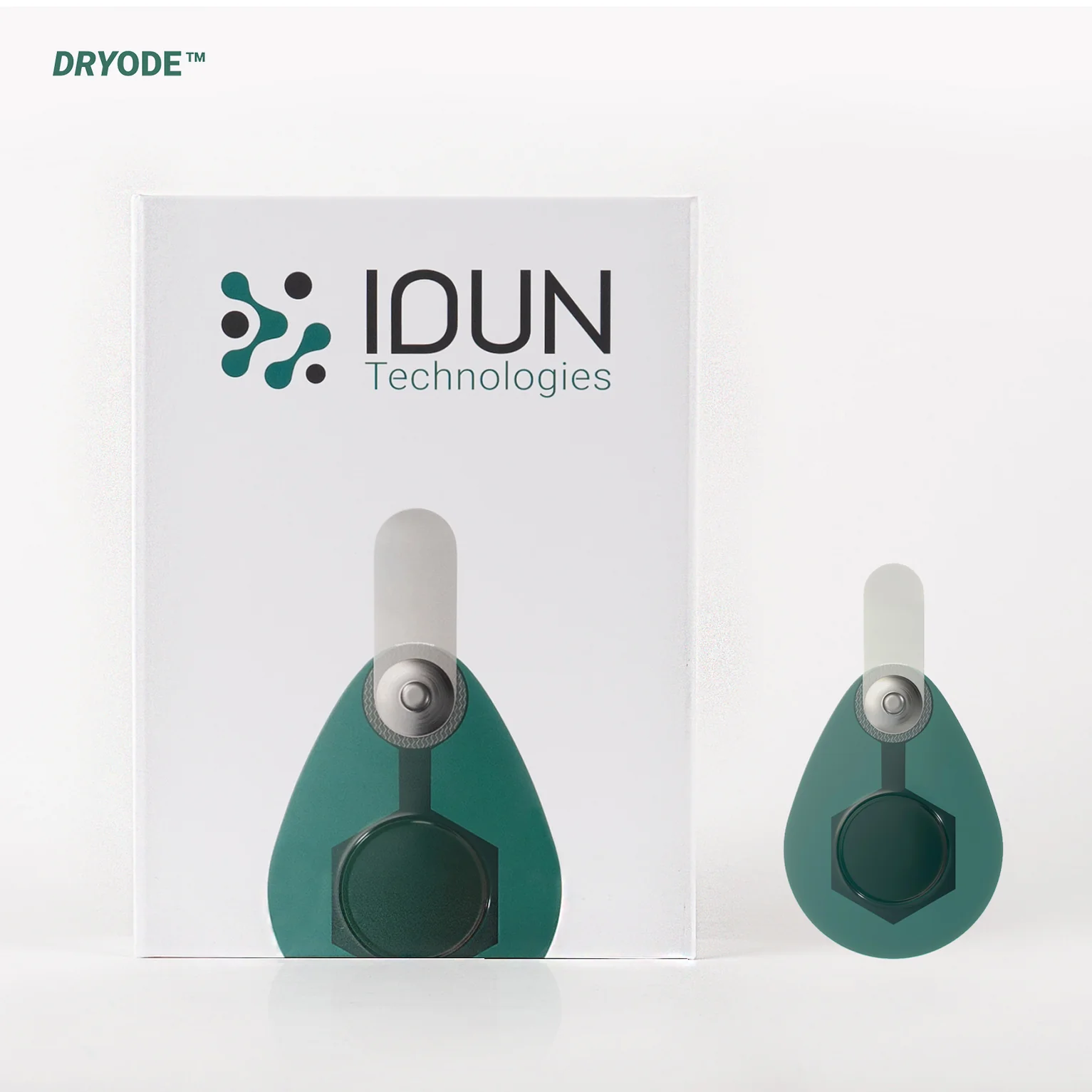

Dryode™ Alpha Kit includes:

• 10 Dryode™ Alphas (individual passive electrodes)
• 10 Adhesive patches
• 10 Alcohol wipes
• Instructional leaflet
• Storage box

Dryode™ Alpha Kit with Snap Cables includes:

• All of the above plus:
• One pack of OpenBCI snap electrode cables (10/pack)

Head over to our documentation for step-by-step EMG data collection and more!

Wearable sensing underwater:

Beat-to-beat analysis, heart rate variability and early signs of decompression sickness can be measured even at 40 meters under water. The IDUN Dryode™ is able to reduce disrupting motion effects and deliver a fantastic signal quality.
