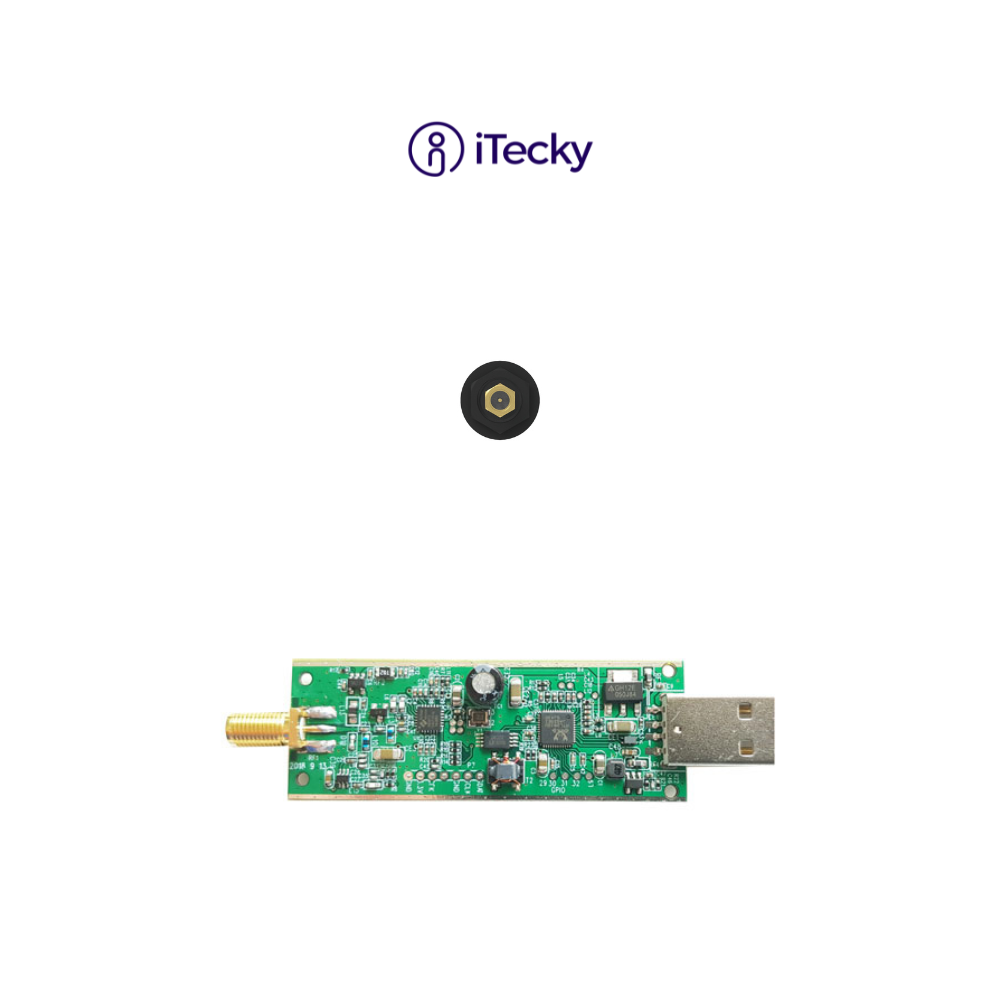

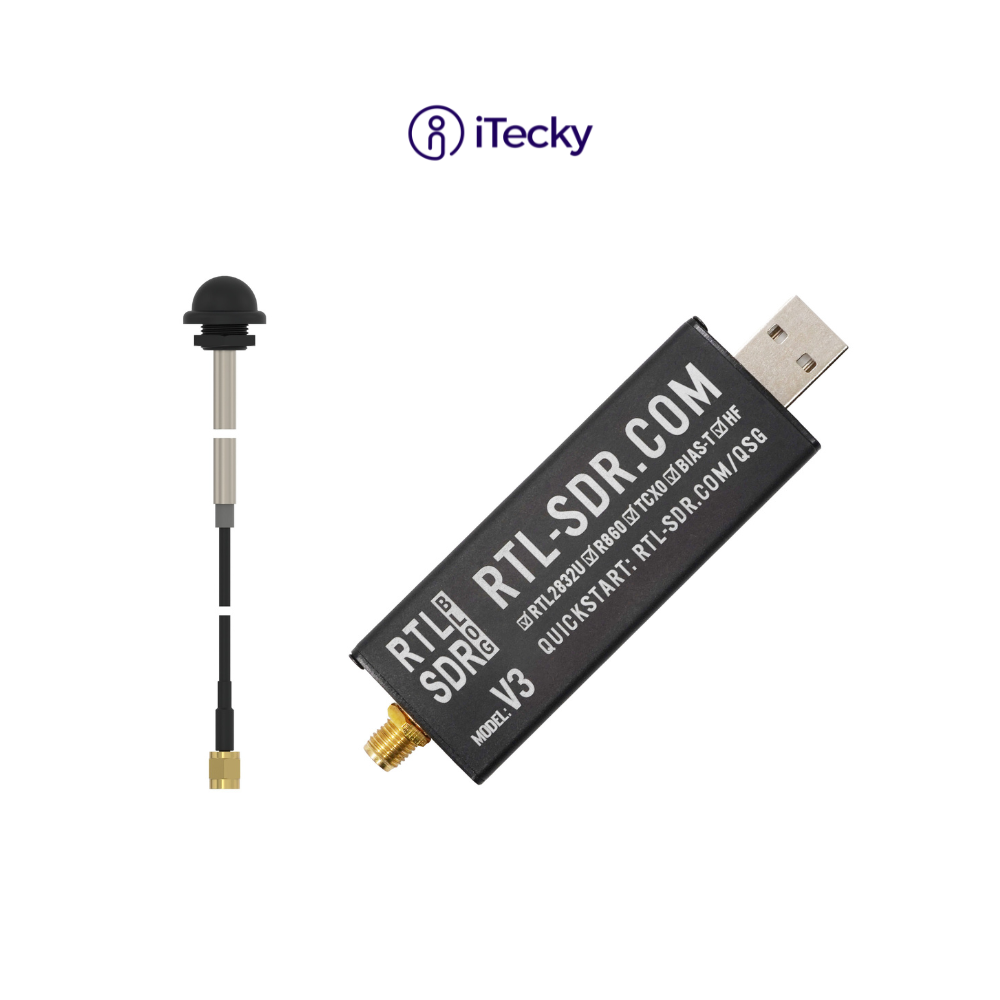

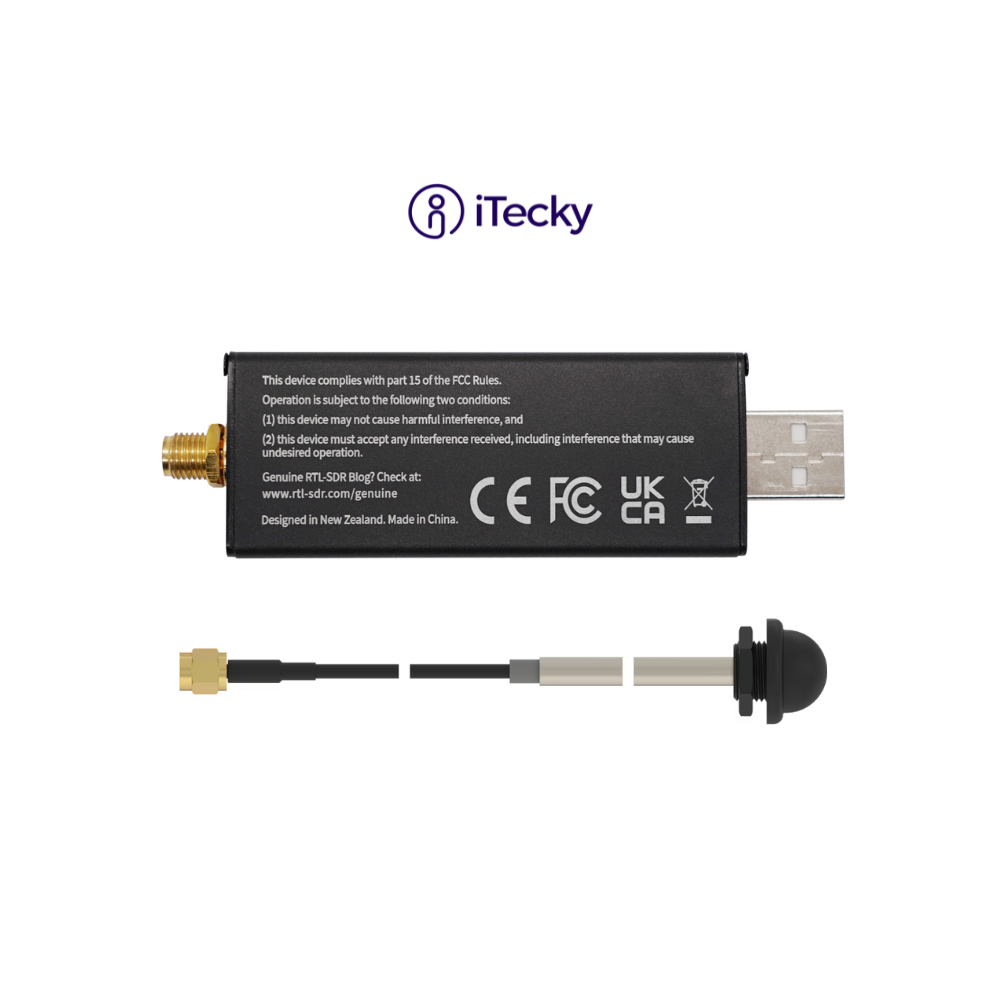

The kit includes an RTL-SDR Blog V3 R860 (R820T2) / RTL2832U software-defined radio dongle and an ANT-868-WRT external panel-mount dipole antenna. The SDR features a highly stable 1 PPM TCXO, SMA connectivity, aluminum passive cooling, software-switchable bias tee, additional ESD protection, reduced noise, and built-in direct sampling for basic HF reception.

The included 868 MHz antenna is designed for LPWA and ISM-band applications such as LoRaWAN®, Sigfox®, remote control, sensing, monitoring, industrial equipment, automated systems, smart-home networking, and IoT devices. Its integrated counterpoise allows installation without an additional ground plane.

Specifications

RTL-SDR Receiver

• Brand: RTL-SDR Blog

• Model: V3

• Tuner: R860 (R820T2)

• SDR Chipset: RTL2832U

• Frequency Stability: 1 PPM TCXO

• Connector: SMA Female

• Housing: Aluminum

• Cooling: Passive cooling

• Bias Tee: Software-switchable

• ESD Protection: Additional built-in protection

• Noise: Reduced overall RF noise

• HF Reception: Built-in direct sampling for basic HF reception

• Product Type: Software Defined Radio (SDR) receiver

ANT-868-WRT Antenna

• Antenna Type: External panel-mount dipole

• Operating Frequency: 862–876 MHz

• Nominal Frequency: 868 MHz

• Peak Gain: 3.8 dBi

• VSWR: ≤ 1.4

• Efficiency: 48%

• Height: 10.0 mm (0.40 in)

• Diameter: 19.0 mm (0.75 in)

• Mounting: Pressure-sensitive adhesive ring + hex nut

• Counterpoise: Integrated

• Cable Length: 216 mm (8.5 in)

• Antenna Connector Options: SMA, RP-SMA, MMCX, MHF1/U.FL

• Application: LPWA, LoRaWAN®, Sigfox®, ISM, IoT, remote control, sensing and monitoring
