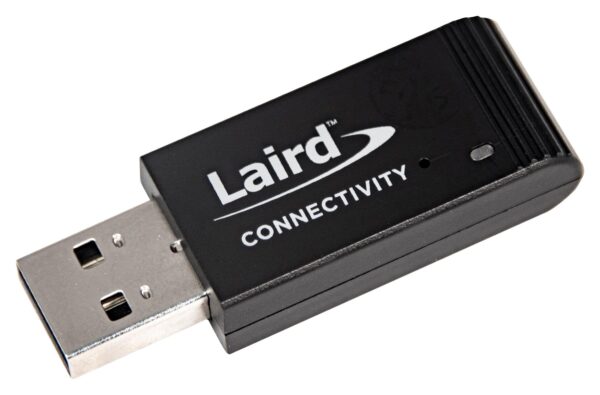

Laird Bluetooth USB Adapter
Laird Bluetooth USB Adapter
₹6,499.00 (Inc. All Taxes And With GST Input Credit)
▪ Bluetooth v5 Bluetooth Low Energy (BLE)
– BLE Peripheral/Central roles with DTM embedded
– 2 Mbps and LE Long Range: Support for 2 Mbps, 1 Mbps,
and 125 Kbps coded
▪ Capable of Hostless operation – Internal MCU reduces BOM
▪ Temp Range: Industrial Temp Rating (-40º to +85º C)
▪ Robust design: Production use ready
▪ Powerful Core: Cortex-M4F (1 MB Flash, 256 KB RAM)
▪ Development Choice: Optimized for Nordic SDK or Zephyr RTOS
▪ Fully certified: FCC, IC, CE, MIC, RCM, plus Bluetooth SIG
▪ White Labelling: Options available for OEM branding
- SKU:
- 451-00004
- KEY SPECIFICATIONS
Category Feature Specification
Wireless Specification Bluetooth® v5 – Single-Mode (Peripheral and Central Roles)
Frequency 2.402 – 2.480 GHz
Transmit Power + 8 dBm (maximum). Configurable down to -40 dBm
Receive Sensitivity -95 dBm (typical @ BLE 1 Mbps)
-92 dBm (typical @ BLE 2 Mbps
-103 dBm (typical @ BLE 125 Kbps)
Link Budget 103 dB (@ BLE I Mbps), 111 db (@ BLE 125 Kbps)
Antenna Options PCB Trace antenna
Raw Data Rates (Air) 1 Mbps, 2 Mbps, 125 Kbps
Host Interface and
Peripherals
Interface USB
Other Configurable LED
Key BLE Features Bluetooth Low Energy ▪ GATT client and GATT server –
Any Adopted/Custom Services
▪ Central/Peripheral roles
▪ Anything from Nordic SDK
▪ BLE mesh
▪ CODED PHY
▪ 2M PHY
▪ LE advertising extensions
▪ LE secure connections
▪ Data packet length extensions
▪ LE privacy v1.2
▪ LE ping
▪ Anything from Zephyr RTOS
Programmability
Options
Nordic SDK www.nordicsemi.com
Zephyr RTOS www.zephyrproject.org
Firmware Upgrade Via USB/Bootloader
Support Operating Systems Windows 7 and 10
Mac OSX
Linux and Android
Power Consumption – Current Max Peak Radio Current (@ +8 dBm TX) – TBC mA (DCDC at 3V)
Max Peak Radio Current (@ 0 dBm TX) – TBC mA (DCDC at 3V)
Supply Voltage 5.0V +/- 10%
Powered by standard USB port
Physical Dimensions 18.39 mm x 50.74 mm x 11 mm
Environmental Temp Range -40°C to +85°C
Miscellaneous Lead Free Lead-free and RoHS compliant
Development Tools Utilities Nordic nRFConnect Tools and Utilities
Qualifications Bluetooth® Complete Declaration ID
Regulatory Approvals FCC/IC/RCM/CE/MIC
