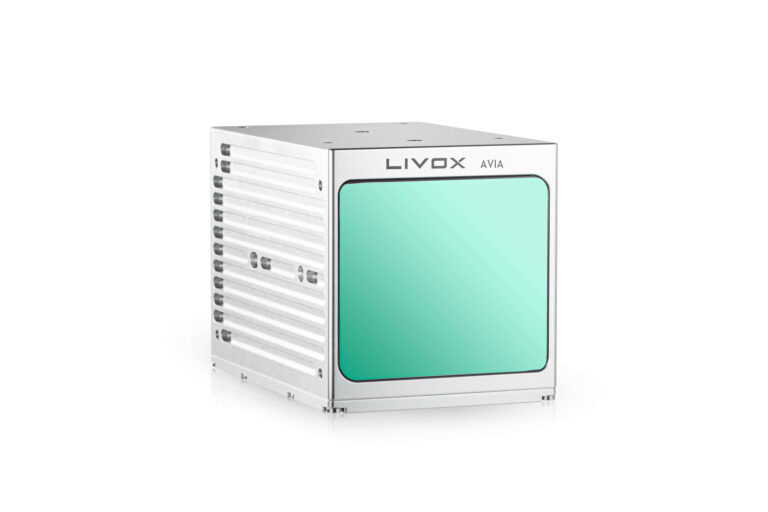

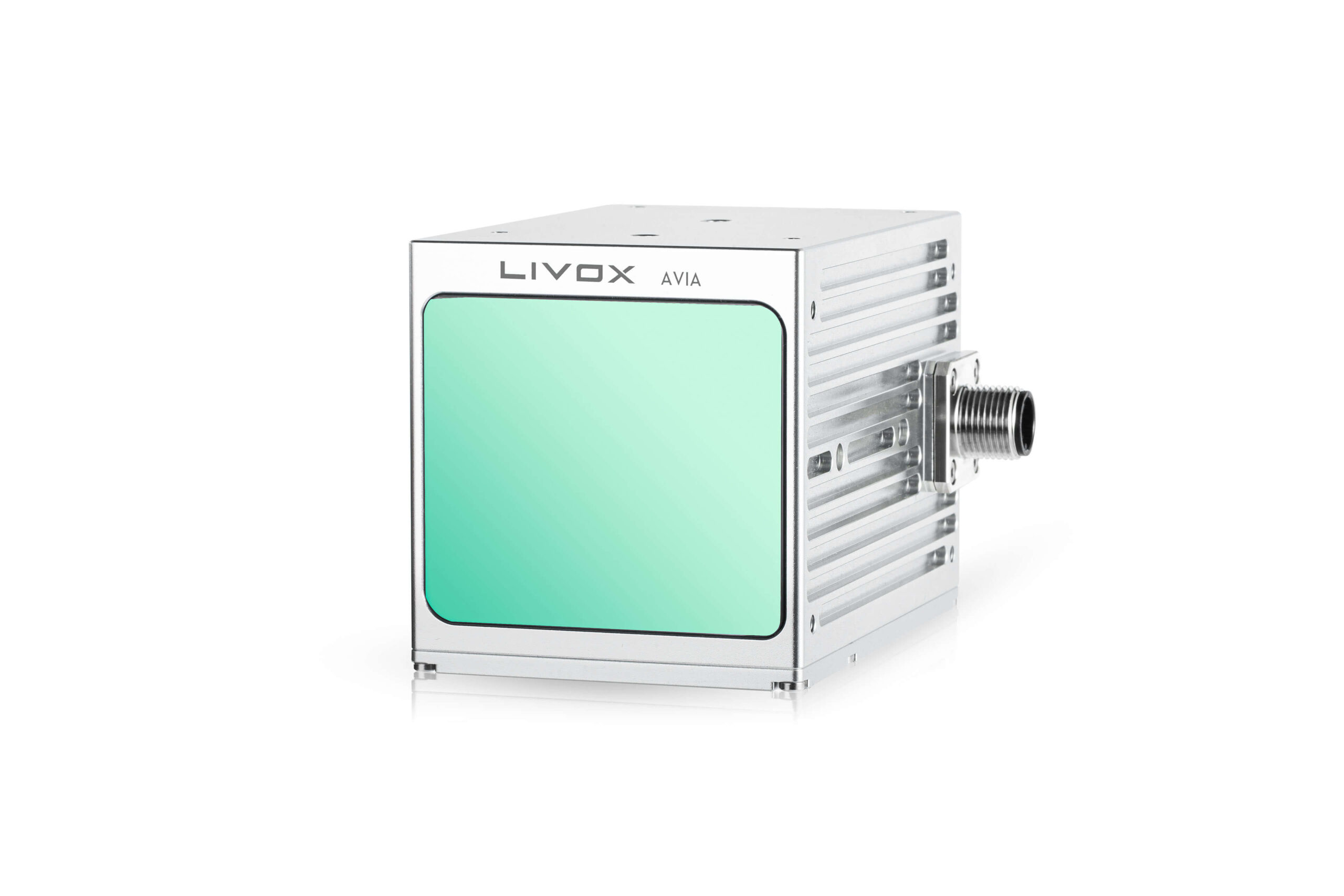

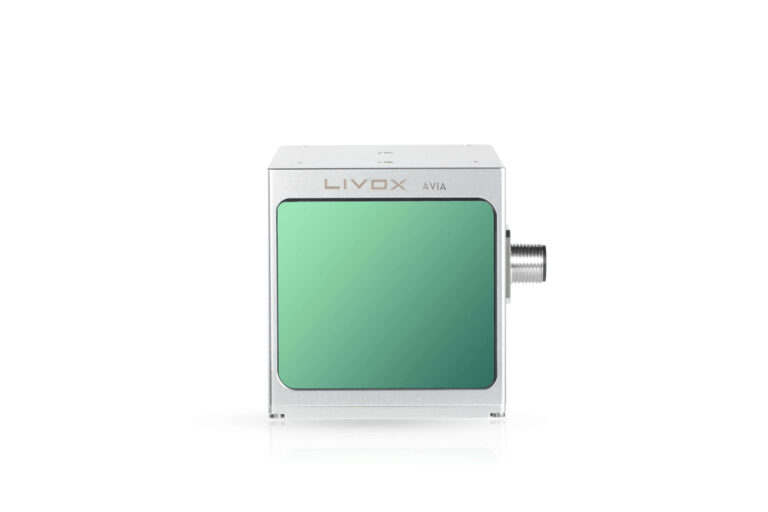

AVIA

905 nm

Class 1 (IEC60825-1:2014)(Eye Safety)

190 m @ 10% reflectivity
230 m @ 20% reflectivity
320 m @ 80% reflectivity

190 m @ 10% reflectivity
260 m @ 20% reflectivity
450 m @ 80% reflectivity

Non-repetitve scanning pattern:
70.4° (Horizontal) ×77.2° (Vertical)
Repetitve line scanning:
70.4° (Horizontal) ×4.5° (Vertical)

2 cm¹

< 0.05º

0.28° (Vertical) × 0.03° (Horizontal)

240,000 points/s (first or strongest return)
480,000 points/s (dual return)
720,000 points/s (triple return)

≤ 2 ms

100 Mbps Ethernet

IEEE 1588-2008 (PTPv2), PPS (Pulse Per Second), GPS (PPS+UTC)

< 0.0003%

Built-in model: BMI088

-4°F to 149°F (-20℃ to 65℃)

IP67

Repetitive scanning pattern: 9 W (Startup: 16W)
Non-repetitive: 8 W (Startup: 16W)

10 ~ 15 V DC（with Converter 2.0: 9~30V DC ）

40cm omnidirectional <45 dBA

91×61.2×64.8 mm

498 g (without cables)

1. Measured in an environment of 25℃ with a target (80% reflectivity) 20 meters away. The result may vary under different test conditions.
2. The false alarms ratio of the noise created by the stray light in a test environment of 0 to 100 klx at a temperature of 25℃.
3. The Livox Avia has an overall IP rating of IP67 (not including Livox Converter 2.0 and cables)
4. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information.
5. Make sure the output voltage of the power supply is within this range at all times.
