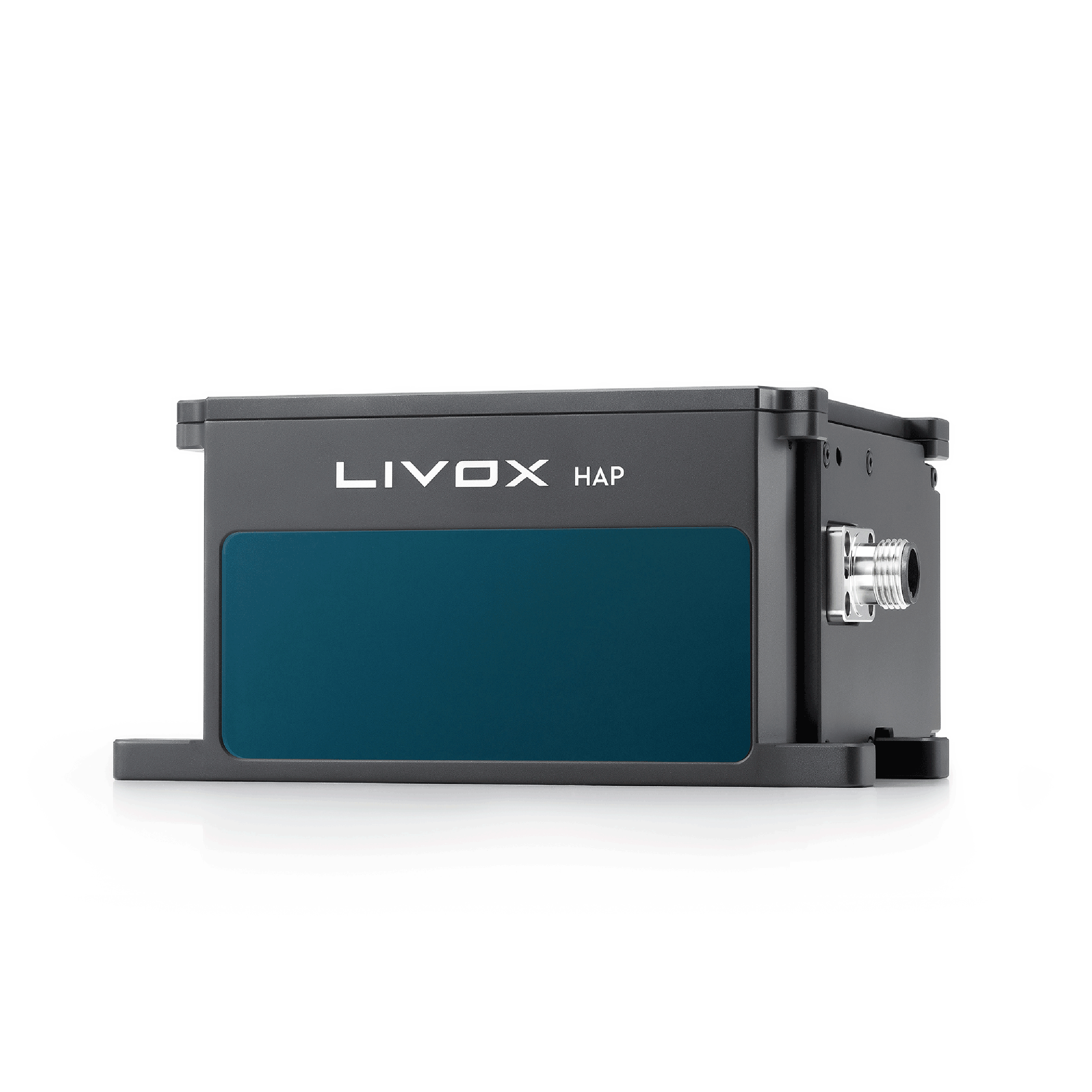

Livox HAP Lidar
Livox HAP Lidar
₹269,999.00 – ₹272,999.00 (Inc. All Taxes And With GST Input Credit)
- Detection range: 150m @ 10% reflectivity
- FOV: 120° (horizontal) x 25° (vertical)
- Angle resolution: 0.18°(horizontal) x 0.23°(vertical)
- SKU:
- HAP
Model
HAP (T1) / HAP (TX)
Laser Wavelength
905 nm
Laser Safety
Class 1 (IEC60825-1:2014)(Eye Safety)
Detection Range (@ 100 klx)
150 m @ 10% reflectivity
FOV
120° (Horizontal) ×25° (Vertical)
Distance Random Error (1σ @ 20m)
< 2 cm¹
Angular Random Error（1σ ）
< 0.1º
Beam Divergence
0.28° (Vertical) × 0.03° (Horizontal)
Angular Resolution @ROI
0.23° (Vertical) × 0.18° (Horizontal)
Point Rate
452,000 points/s (first or strongest return)
Data Port
HAP (T1) : 100BASE-T1 Automotive Ethernet
HAP (TX) : 100BASE-TX Ethernet
HAP (TX) : 100BASE-TX Ethernet
Data synchronization
gPTP
False Alarm Rate (@ 100 klx) ²
< 0.01%
Operating Temperature
-40°F to 185°F (-40℃ to 85℃)
Power
12 W typical ³ (Startup: 26W)
Power Supply Voltage Range
9 ~ 18 V DC
Noise
40cm omnidirectional <45 dB (A)
IP Rating
IP67
Dimensions
105×131.6×65 mm
Weight
Appro. 1120 g
Notes
1. Measured in an environment of 25℃ with a target (80% reflectivity) 20 meters away. The result may vary under different test conditions.
2. The false alarms ratio of the noise created by the stray light in a test environment of 0 to 100 klx at a temperature of 25℃.
3. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information.
2. The false alarms ratio of the noise created by the stray light in a test environment of 0 to 100 klx at a temperature of 25℃.
3. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information.
| Version | TX(With Wires), T1(With Wires) |
|---|
