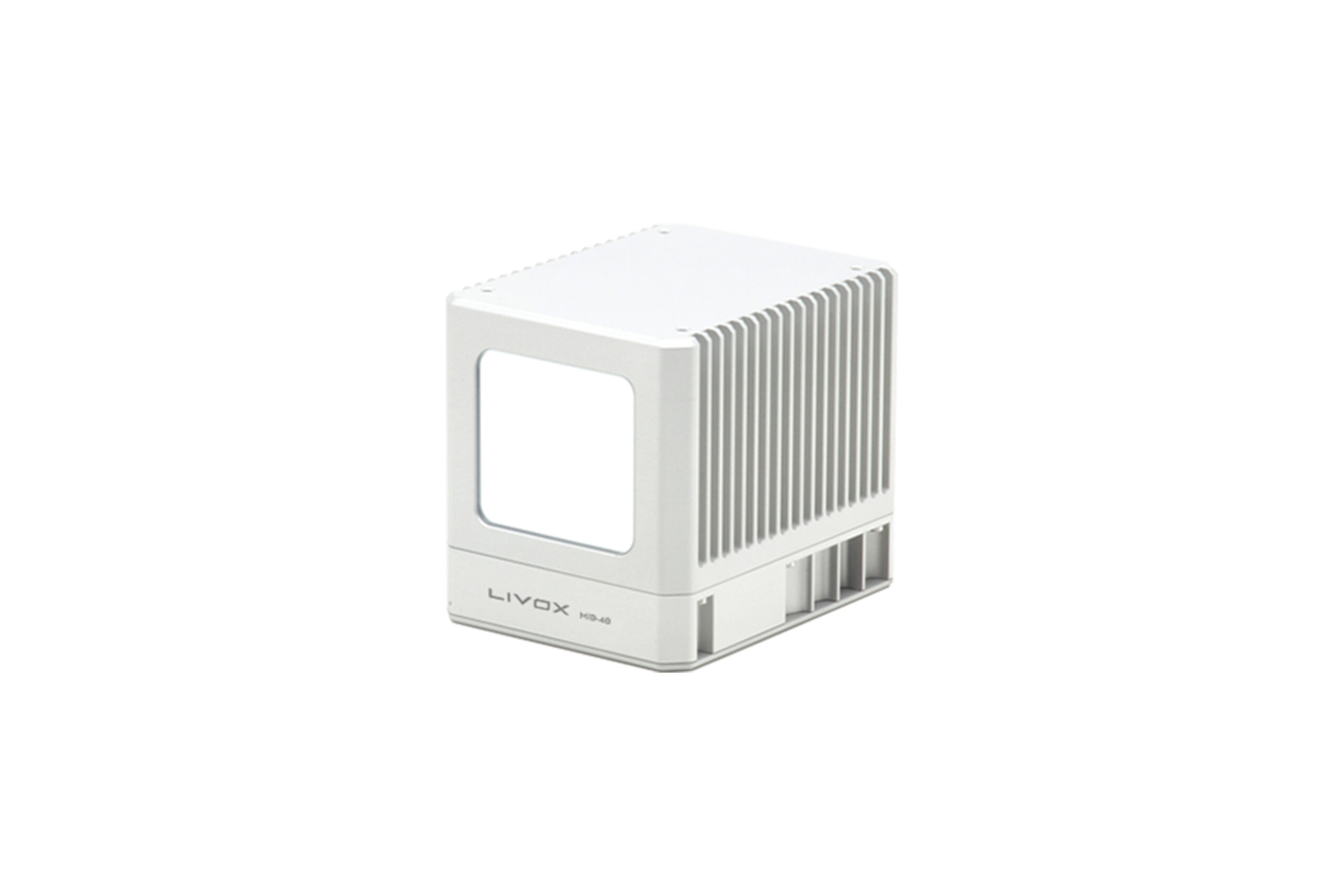

Livox Mid-40 LiDAR
Livox Mid-40 LiDAR
Original price was: ₹119,999.00.₹99,999.00Current price is: ₹99,999.00. (Inc. All Taxes And With GST Invoice For Input Credit)
- 260 m @ 80% Reflectivity
- 2 cm Range Precision
- 0.1° Angular Accuracy
- Non-Repetitive Scan Pattern
- High Reliability
- SKU:
- Mid-40
Basic Specs
Model
Mid-40
Laser Wavelength
905 nm
Laser Safety
Class 1 (IEC60825-1)
Detection Range (@ 100 klx)
90 m @ 10% reflectivity
130 m @ 20% reflectivity
260 m @ 80% reflectivity
130 m @ 20% reflectivity
260 m @ 80% reflectivity
FOV
38.4° Circular (Mid-40)
98.4° (Horizontal) × 38.4° (Vertical)
98.4° (Horizontal) × 38.4° (Vertical)
Range Precision (1σ @ 20 m)
2 cm¹
Angular Precision
< 0.1º
Beam Divergence
0.28° (Vertical) × 0.03° (Horizontal)
Point Rate
100,000 points/s (Mid-40)
FOV Coverage
20% @ 0.1 s, 68% @0.5 s, 93% @ 1 s ²
False Alarm Rate (@ 100 klx) ³
< 0.01%
Operating Temperature
-4˚F to 149˚F (-20˚C to 65˚C)
IP Rating
IP67⁴
Power
10 W typical⁵ (Mid-40)
Voltage
Voltage
10 ~ 16 V DC（Typical 12 V DC）
Interface
Ethernet
Data synchronization:
IEEE 1588-2008 (PTPv2), PPS (Pulse Per Second)
Dimensions
88×69×76 mm (Mid-40)
Weight
Weight
Approx. 760 g (Mid-40)
Data Latency
Data Latency
2ms
Notes
1. Measured in an environment of 25℃ with a target (80% reflectivity) 20 meters away. The result may vary under different test conditions.
2. For more information, refer to the user manual.
3. The proportion of false alarms generated by ambient stray light in daylight conditions of 100 klx.
4. Operating fan is rated IP55.
5. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information.
2. For more information, refer to the user manual.
3. The proportion of false alarms generated by ambient stray light in daylight conditions of 100 klx.
4. Operating fan is rated IP55.
5. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information.
