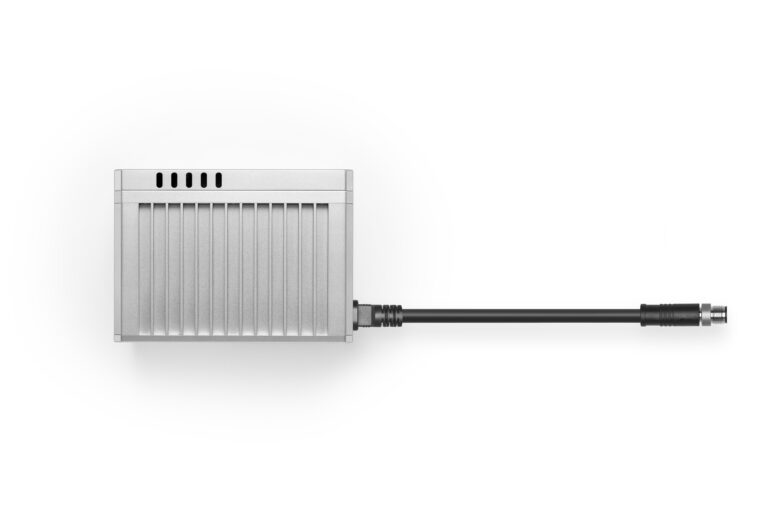

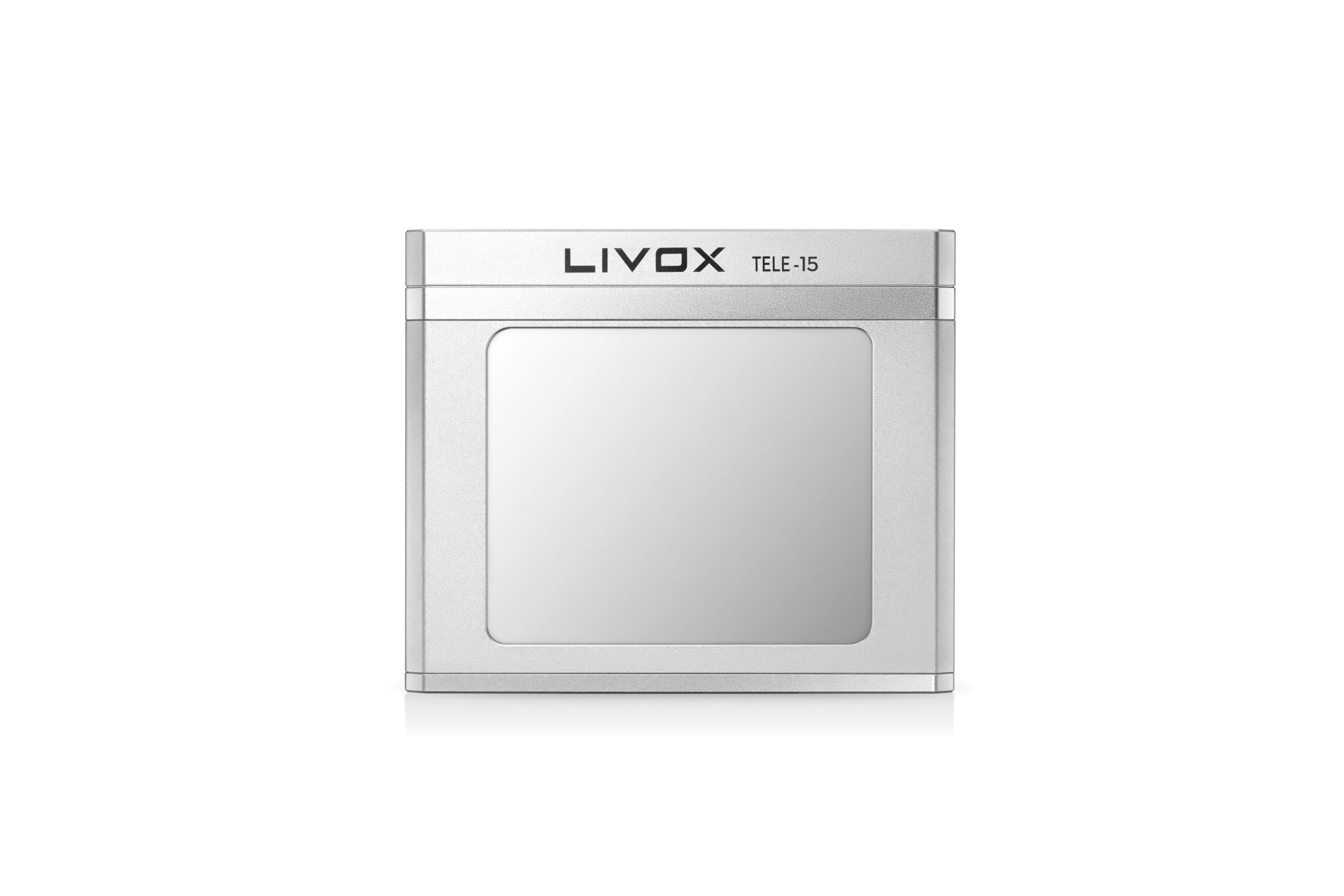

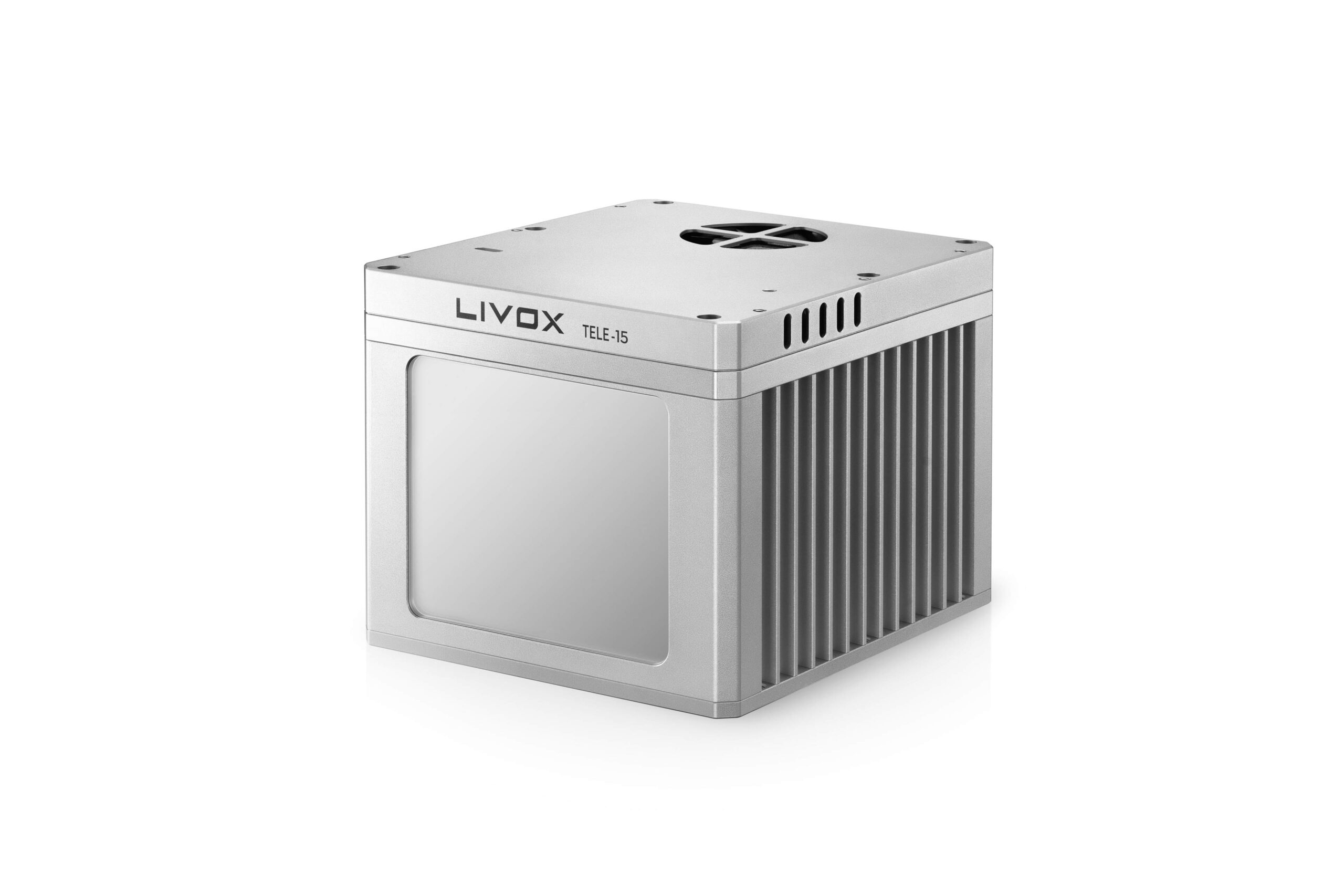

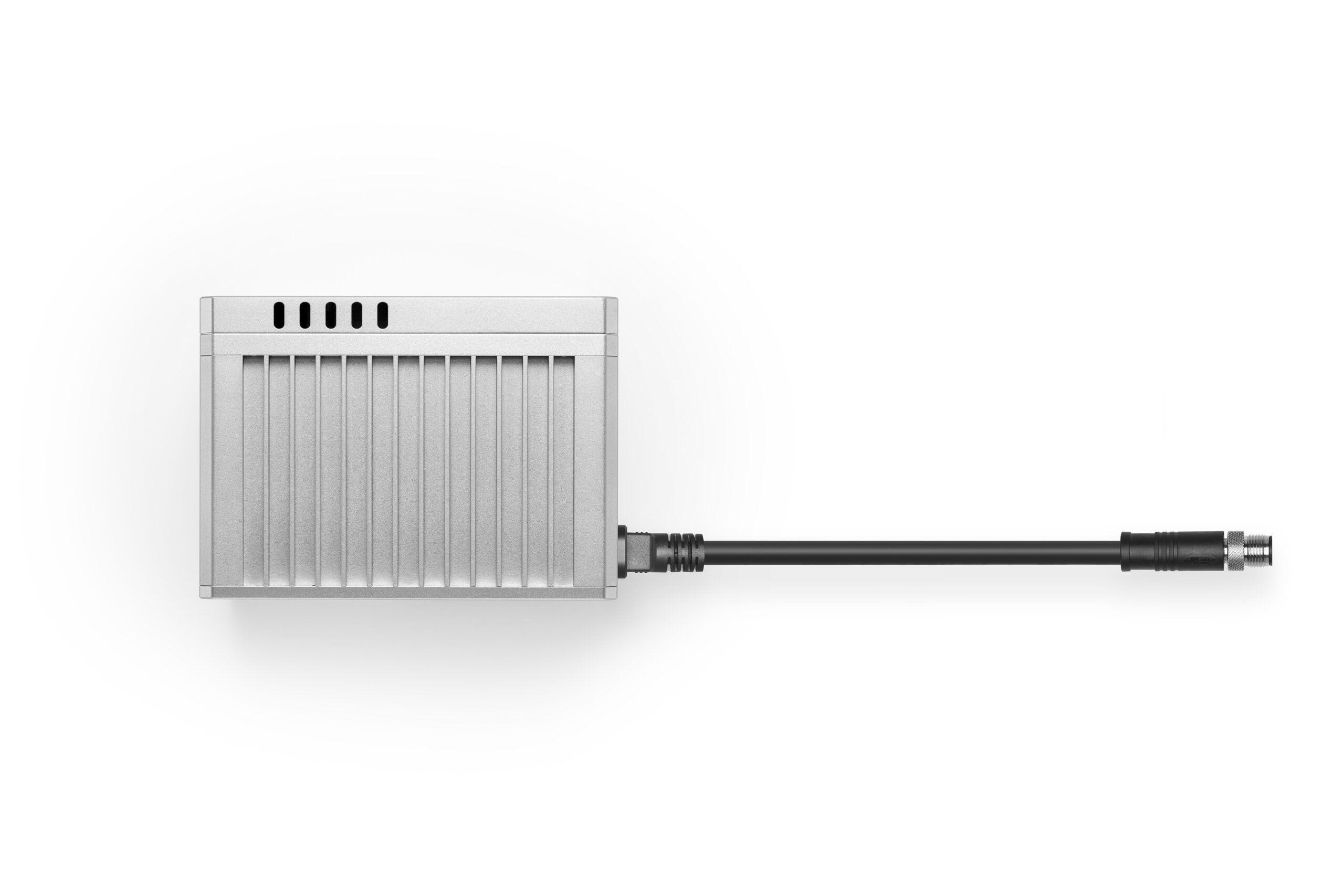

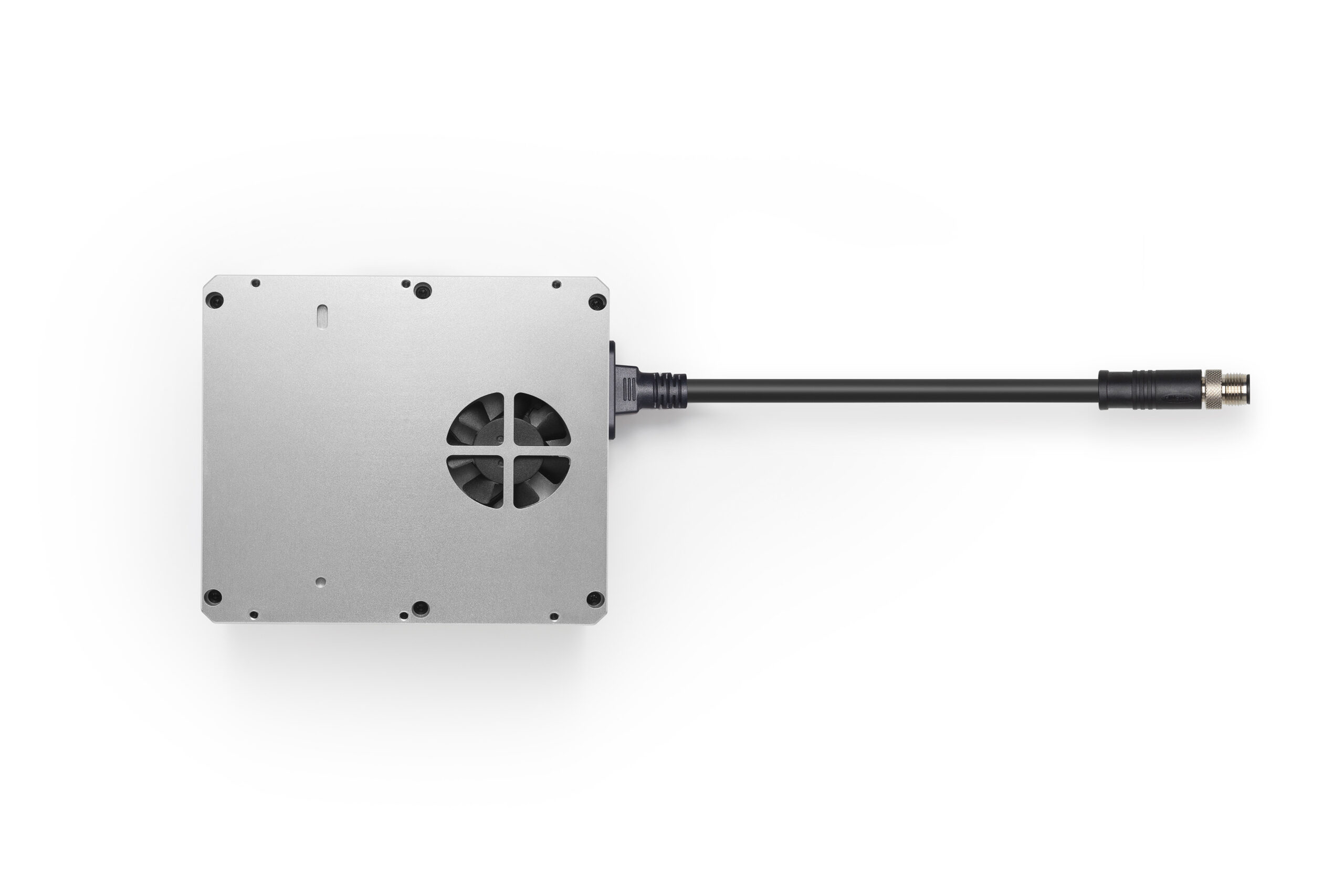

Livox TELE-15 LiDAR
Livox TELE-15 LiDAR
Original price was: ₹299,999.00.₹244,999.00Current price is: ₹244,999.00. (Inc. All Taxes And With GST Invoice For Input Credit)
- Superior to 128-line ultra-high point cloud density.
- Capable of detecting objects at a distance of up to 500 meters.
- Ultra-High Point Cloud Precision.
- Stable and Reliable.
- SKU:
- TELE-15
Basic Specs
Model
TELE-15
Laser Wavelength
905 nm
Laser Safety
Class 1 (IEC60825-1:2014)
Detection Range (@ 100 klx)
320 m @ 10% reflectivity
500 m @ 50% reflectivity
500 m @ 50% reflectivity
FOV
14.5° x 16.2°
Range Precision (1σ @ 20m)
2 cm¹
Angular Precision
< 0.03º
Beam Divergence
0.12° (Vertical) × 0.02° (Horizontal)
Point Rate
240,000 points/s （480,000 points/s Dual Return)
FOV Coverage
99.8% @ 0.1 s²
Data Latency
≤ 2 ms
Data Port
100 Mbps Ethernet
False Alarm Rate (@ 100 klx) ³
< 0.01%
IMU
Built-in IMU model: BMI088
Operating Temperature
-40˚F to 185˚F (-40˚C to 85˚C)
IP Rating
IP67
Power
12 W typical⁴
Voltage
10 ~ 15 V DC（Converter 2.0: 9 ~ 30V DC）
Interface
Ethernet
Data synchronization
IEEE 1588-2008 (PTPv2), PPS (Pulse Per Second)
Dimensions
112 × 94.2 x122 mm (with self-dissipation module)
112 × 82.4 x122 mm (without self-dissipation module)
112 × 82.4 x122 mm (without self-dissipation module)
Weight
1600 g (with self-dissipation module)
1500 g (without self-dissipation module)
1500 g (without self-dissipation module)
Notes
1. Measured in an environment of 25℃ with a target (80% reflectivity) 20 meters away. The result may vary under different test conditions.
2. For more information, refer to user manual.
3. The proportion of false alarms generated by ambient stray light in daylight conditions of 100 kilolux.
4. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information.
2. For more information, refer to user manual.
3. The proportion of false alarms generated by ambient stray light in daylight conditions of 100 kilolux.
4. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information.
