Technical Specs

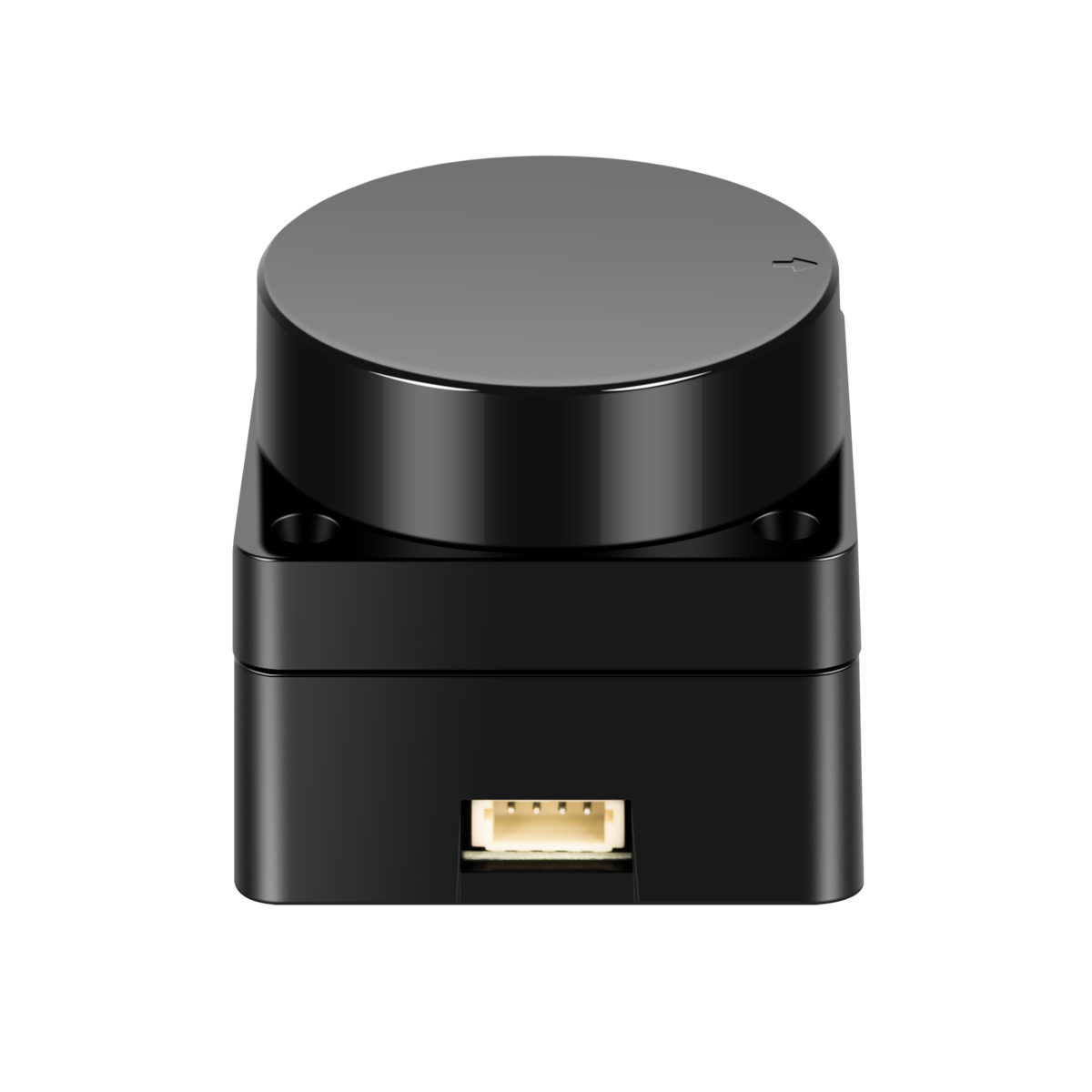

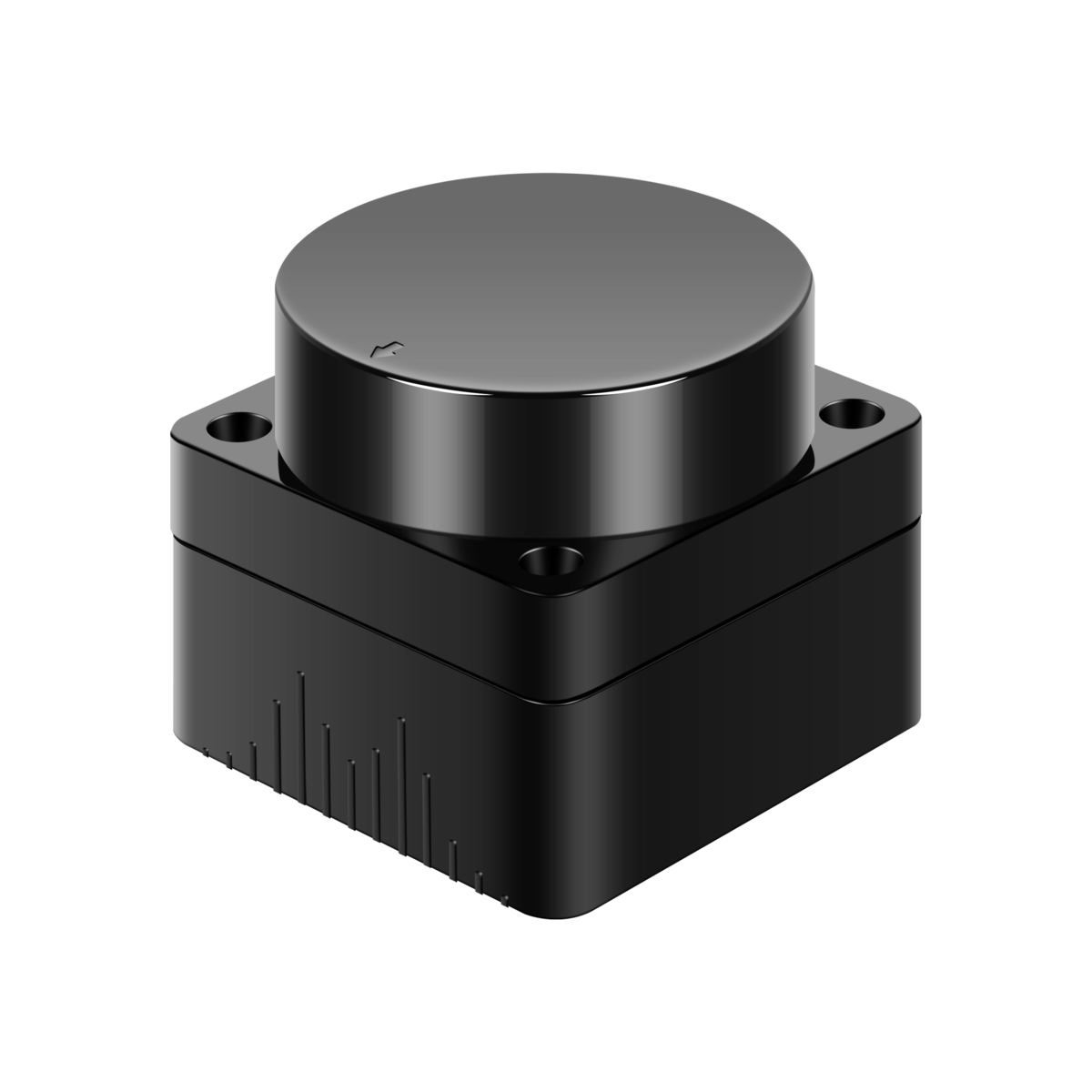

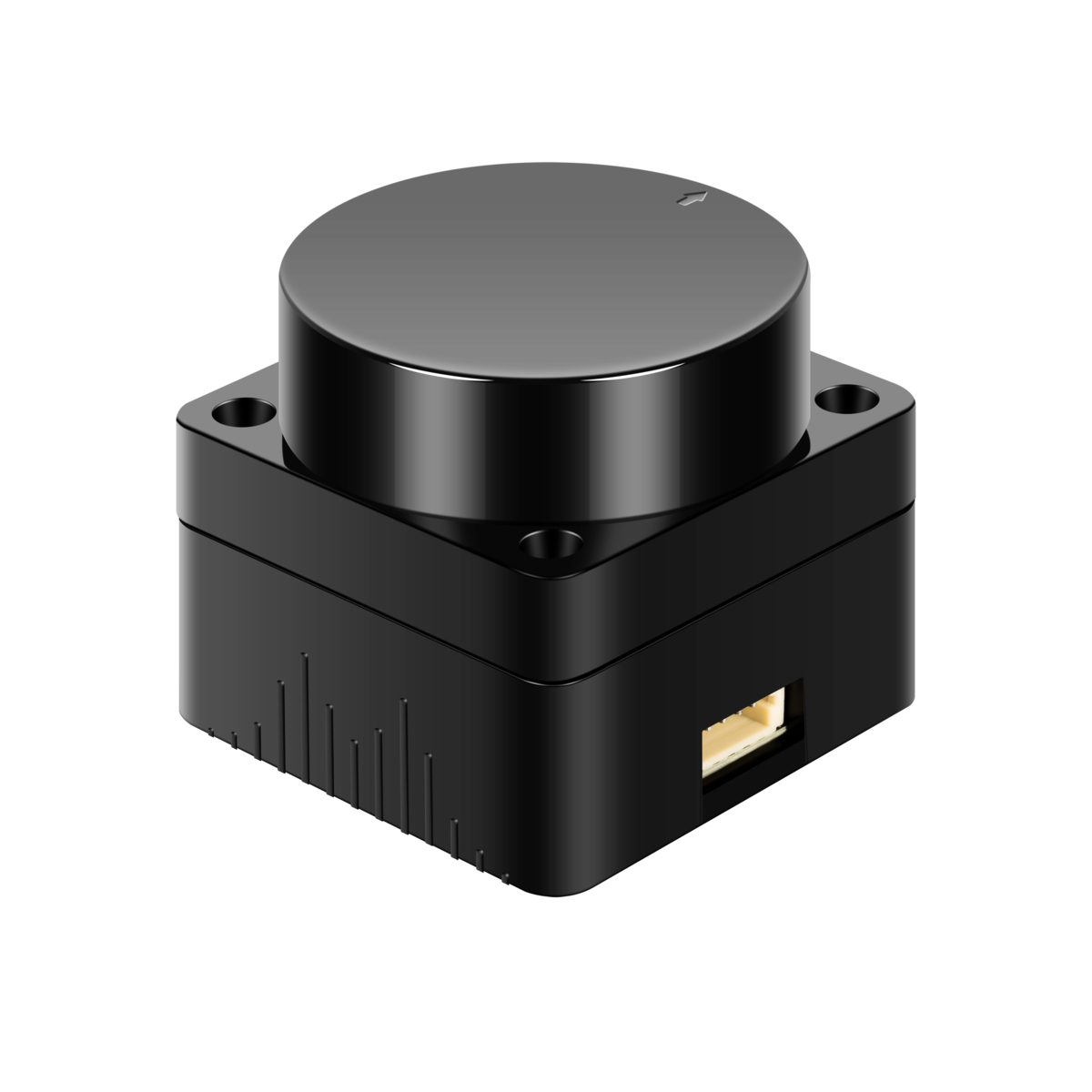

Product Name | MS200 |
---|---|
Measurement Principle | dToF |
Certification | RoH2.0, REACH, CE, FCC |
Measurement Range | 0.03m~12m @90% reflectivity |
Dimensions | 37.7mmL x 37.5mmW x 30mmH |
IP Rating | IP5X |
Weight | 40g |
Data Output | Distance, Angle, Intensity, Timestamp |
Angular Resolution | .08° @10 Hz |
Laser Pitch Angle | .05~2° |
Ambient Illuminance | 40,000 Lux |
Distance Accuracy | ±10°mm (0.03m~2.0m) ±20°mm (2.0m~12.0m) |
Start-Up Current | <500 mA |
Laser Safety | Class 1 |
Temperature | -10℃-50℃ Typical 25℃ |
