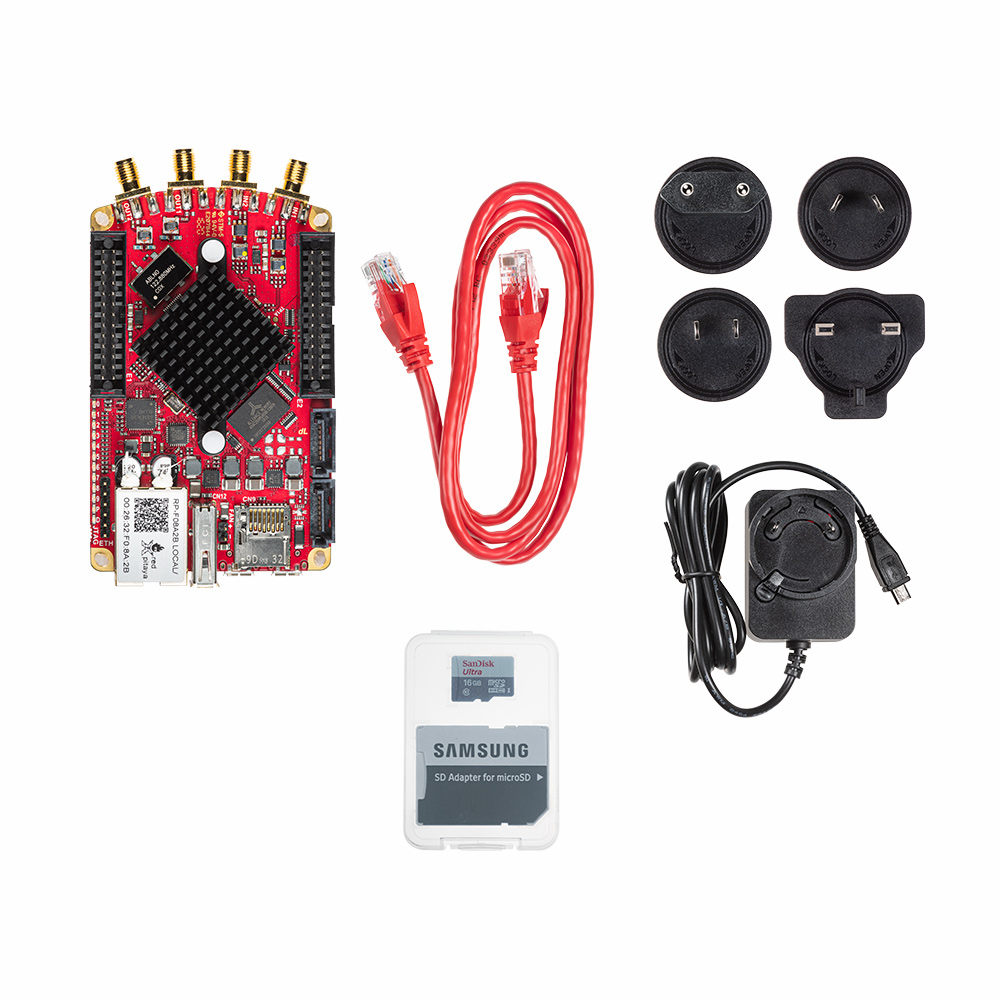

Red Pitaya SDRlab 122-16

,

Red Pitaya SDRlab 122-16

₹102,999.00 – ₹110,999.00 (Inc. All Taxes And With GST Input Credit)

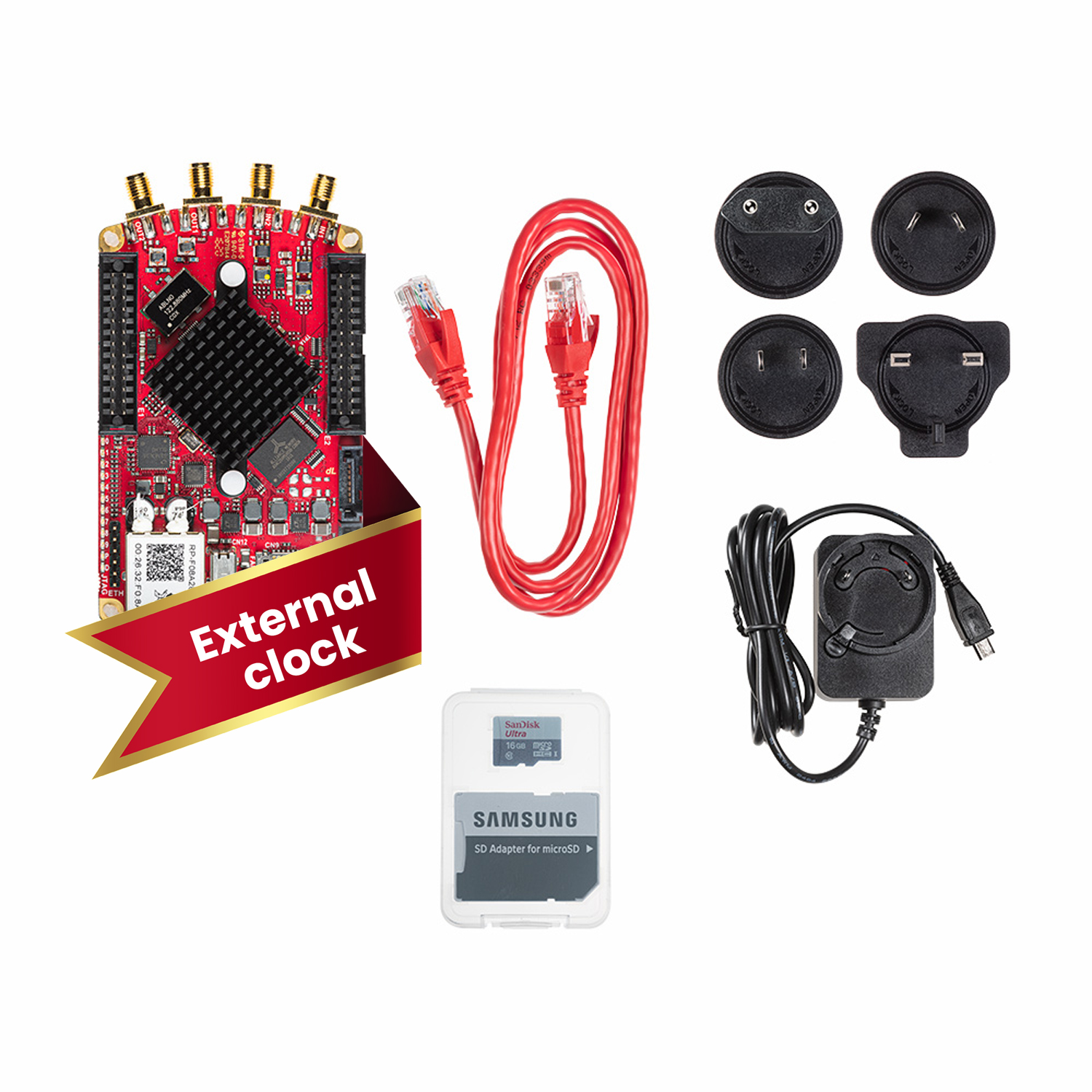

SDRlab 122-16 External clock is based on the SDRlab 122-16 model that is modified to be used with an external clock oscillator, which is important especially for RF applications that operate at other frequencies, require better quality clock or clock synchronization.

With this modification, users can provide their own clock for the Red Pitaya device through the E2 extension connector.

  • SKU:
  • SDRlab 122-16
Basic
Processor Dual-Core ARM Cortex-A9 MPCore
FPGA Xilinx Zynq 7020
RAM 512MB (4Gb)
System memory Micro SD up to 32GB
Connectivity
Ethernet 1 Gbit
USB USB 2.0
WIFI Using Wi-Fi dongle
RF inputs
Channels 2
Sample rate 122.88MS/s
ADC resolution 16 bit
Full scale voltage range 0.5Vpp/-2dBm
Input Coupling AC
Bandwidth 300 kHz – 550 MHz
Input impedance 50 Ω
RF outputs
Channels 2
Sample rate 122.8MS/s
DAC resolution 14 bit
Full scale voltage range +-0.5V / +4 dBm
Load impendance 50 Ω
Shortcut protection N/A, RF transformer & AC coupled
Typical raising/falling time N/A
Bandwidth 300 kHz – 60MHz
Extension connector
Digital IOs 16
Analog inputs 4 channels 0-3.5V 12bit
Analog outputs 4 channels 0-1.8V 12bit
Communication interfaces I2C, SPI, UART
Available voltages – 4V, + 3.3V, + 5V
Synchronisation
Trigger input Through extension connector
Daisy chain connection Over SATA connection
Ref. clock input N/A
More
Use case ,
Weight 0,5 kg
Dimensions 22 × 14,7 × 7,5 cm
Type

Standard Kit, External Clock Standard Kit
