Signotec Omega Signature Pad
-9%

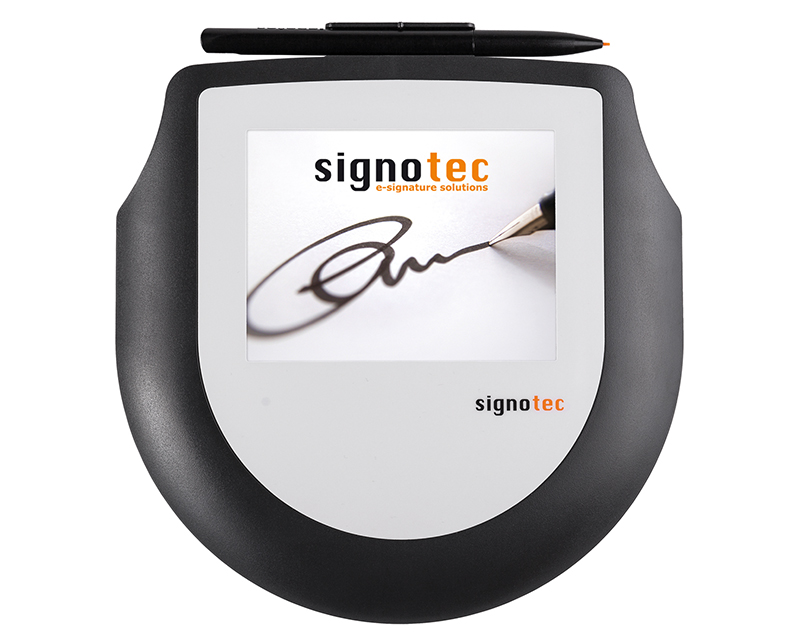

Signotec Omega Signature Pad
Original price was: ₹54,999.00.₹49,999.00Current price is: ₹49,999.00. (Inc. All Taxes And With GST Input Credit)
Extremely flat input device for precise capturing of signatures with a high-resolution 5″ (12.5 cm) full-color display for the brilliant display of the signature in real-time as well as graphics and buttons. Thanks to the big LCD, the pad is best suited for stationary use in the office or at your point of sale (POS). The device has a USB connection cable with approx 2.0 meters length.
- SKU:
- ST-CE1075-2-U100
Description
DISPLAY |
|
| Type | 12,5 cm (5″) Full-Colour LCD with LED backlight |
| Colours | 65.536 |
| Resolution | 640 x 480 pixels |
| Scroll-Function | Yes, graphics up to 640 x 960 pixels |
SENSOR |
|
| Type | RTP (Resistive-Touch-Panel) |
| Pen | Pen with special, resilient pen tip (changeable) |
| Surface | Special foil surface for RTP sensors |
| Life expectancy | approx. 1 Million Signatures |
| Pressure Stages | 1.024 |
| Sample Rate | 500 Hz, 4D Samples (x, y, z, t) |
| Active Signing Area | 100 x 75 mm |
| Resolution | 4.096 x 4.096 Pixel absolute ≙ 2.214 x 1.130 ppi |
NEAR FIELD COMMUNICATION (NFC) |
|
| Availability | Optional, integration under the hand rest |
| Type | NXP PR533 |
| Integration | Microsoft or Linux Smart Card API |
| Compatibility | • Reader/writer functionality compatible with ISO/IEC 14443 A&B, MIFARE™, FeliCa, and NFC Forum tag types (Jewel, MIFARE Ultralight, FeliCa, FeliCa lite, MIFARE DESFire), and supports I-class (Picopass B type modulation) • ISO18092 passive Initiator • Complies with German eID, ICAO, and EMVCo 2.1 • Supports PCSC part 3 release 2.01.07 • Integrated support for MIFARE Reader • USB 2.0 host interface, CCID protocol Support • Validated with Microsoft Windows and Linux CCID native drivers |
SECURITY |
|
| Encryption | AES- and RSA-Encryption |
| Secure Mode | Real-time display of the signature without usable biometrics |
| PDF-Signature | RSA signature creation device inside the pad |
| Hash-Algorithms | SHA-256 und SHA-512 |
| More information can be found below in the tab “Security features”. | |
CONNECTION |
|
| Connection | USB (approx. 2,0 meters cable length) |
| Power Supply | USB |
| Network (TCP/IP) | Yes, with optional signotec USB-Ethernet-Adaptor |
| Terminal Server / Citrix | Yes, optional with hardware FTDI chip or signotec vCOM driver |
| Citrix Virtual Channel | Yes, optional with signotec Virtual Channel driver |
OTHERS |
|
| Dimensions (W x D x H) | 180 x 191 x 15 mm |
| Weight | approx. 350g |
| Status LED | 2-colour status LED |
| Slideshow | Yes, up to 10 images as self-sufficient slideshow inside the pad |
| Customization | Change of housing color and logo print (on request) |
