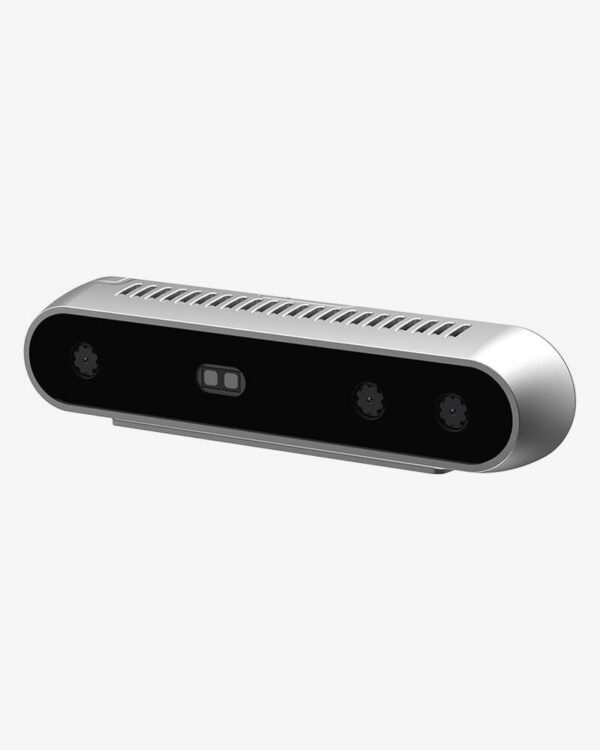

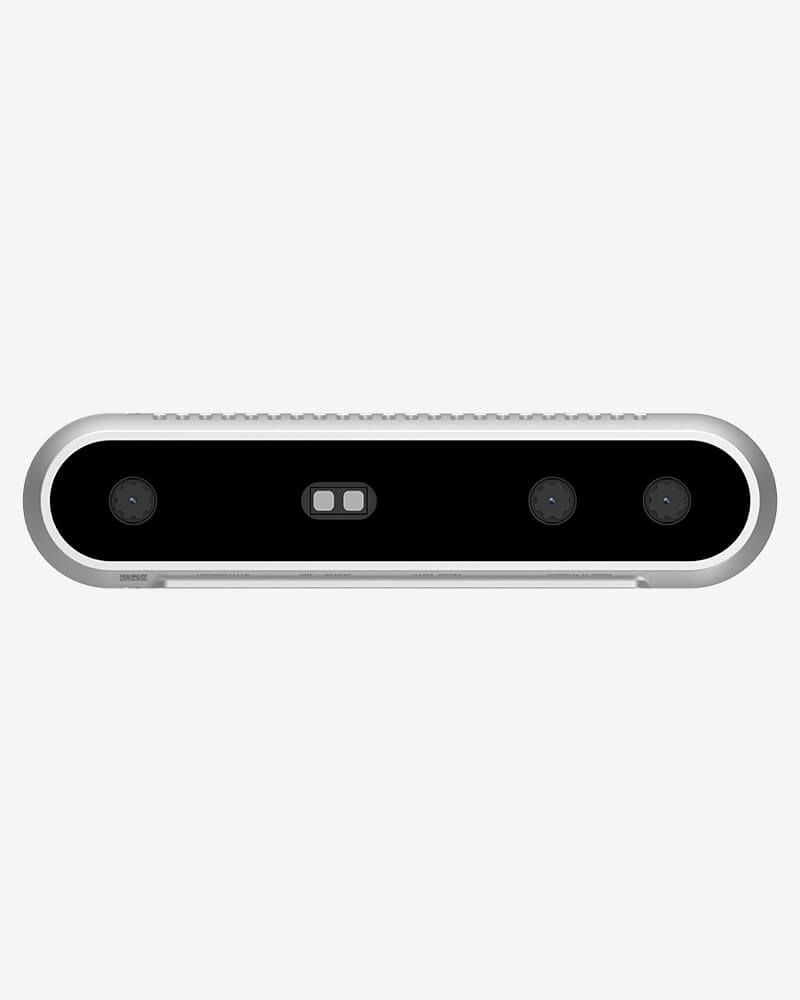

The Intel® RealSense™ Depth Camera D400 Series uses stereo vision to calculate depth. The D415 is a USB-powered depth camera and consists of a pair of depth sensors, RGB sensor, and infrared projector. It is ideal for makers and developers to add depth perception capability to their prototype development.

The depth camera includes:

• A powerful vision processor that uses 28 nanometer (nm) process technology and supports up to 5 MIPI Camera Serial Interface 2 lanes to compute real-time depth images and accelerate output.
• New advanced stereo depth algorithm for accurate depth perception and long range.
• A set of image sensors that enable capturing of disparity between images up to 1280 x 720 resolution.
• Support for the cross-platform, open-source Intel® RealSense™ SDK 2.0.
• Dedicated color image signal processor for image adjustments and scaling color data.
• Active infrared projector to illuminate objects to enhance the depth data.

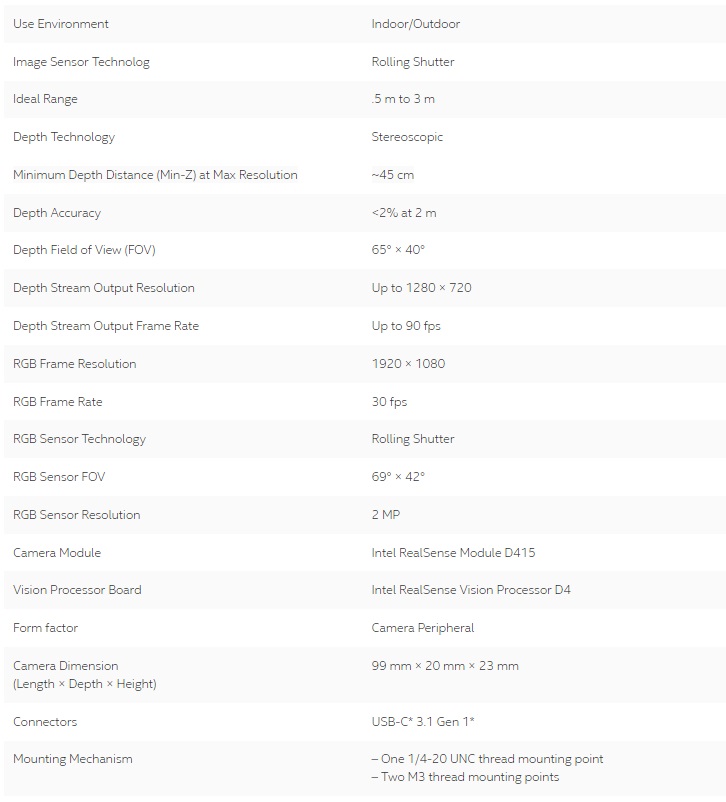

Intel® RealSense™ Depth Camera D415 is designed to best fit your prototype. With the rolling image shutter and narrow field of view (64° x 41° x 77° ±3°), Intel® RealSense™ Depth Camera D415 offers high depth resolution when object size is small and more precise measurements are required.

For more information regarding Intel® RealSense™ Depth Cameras and Intel® RealSense™ technology, go to intelrealsense.com.

The latest release of the Intel® RealSense™ SDK 2.0 is available on our GitHub page at https://github.com/IntelRealSense/librealsense/.
