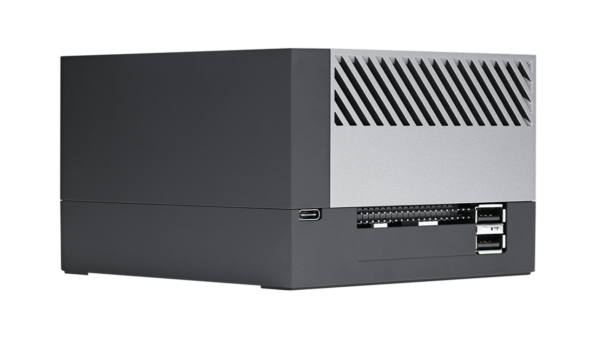

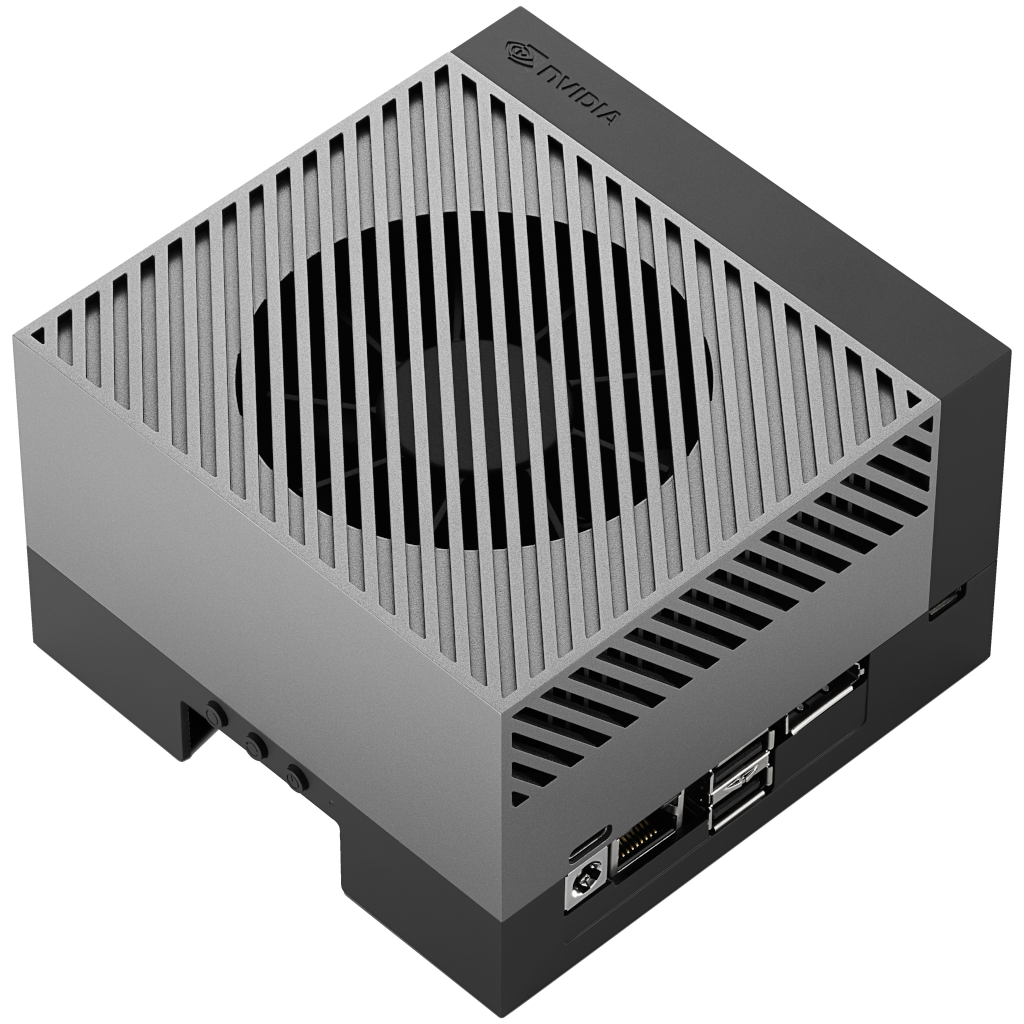

Jetson AGX Orin Developer Kit Specifications
JETSON AGX ORIN MODULE | |
AI Performance | 275 TOPs |
GPU | NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 tensor cores |
CPU | 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
DL Accelerator | 2x NVDLA v2.0 |
Vision Accelerator | PVA v2.0 |
Memory | 32GB 256-bit LPDDR5 204.8 GB/s |
Storage | 64GB eMMC 5.1 |
Video Encode | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) |
Video Decode | 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 | 22x 1080p30 (H.265) |
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features

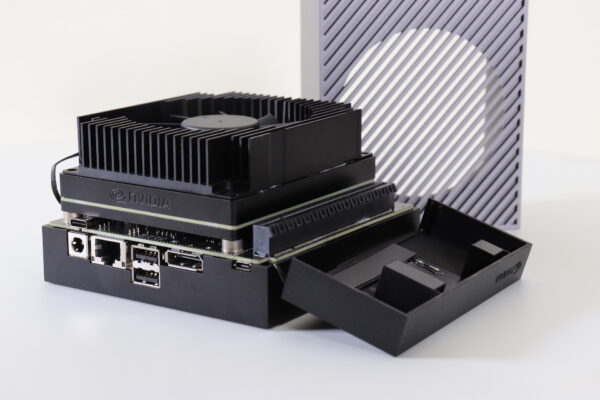

REFERENCE CARRIER BOARD | |
Camera | 16 lane MIPI CSI-2 connector |
PCIe | x16 PCIe slot: Lower x8 PCIe Gen4 |
RJ45 | Up to 10 GbE |
M.2 Key M | x4 PCIe Gen 4 |
M.2 Key E | x1 PCIe Gen 4, USB 2.0, UART, I2S |
USB Type-C | 2x USB 3.2 Gen2 with USB-PD support |
USB Type-A | 2x USB 3.2 Gen2 2x USB 3.2 Gen1 |
USB Micro-B | USB 2.0 |
DisplayPort | DisplayPort 1.4a (+MST) |
microSD slot | UHS-1 cards up to SDR104 mode |
Other | 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, and Reset buttons |
Dimensions | 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
