The Cyton Board is a scientifically-validated research tool
Important Notes
- This kit does not include electrodes.
- It is compatible with our Ultracortex Mark IV Headset, Electrode Cap, Headband Kit, Gold Cup Electrodes, our EMG/ECG Snap Electrode Cables, and our Header pin to touch proof electrode adapter.
- For more detailed information on how to get started with the Cyton Board, go to the Cyton Tutorial page of our website.
- Watch the Cyton Biosensing Tutorial Here
- YouTube video of live-streamed EEG data using the Cyton
Cyton Overview

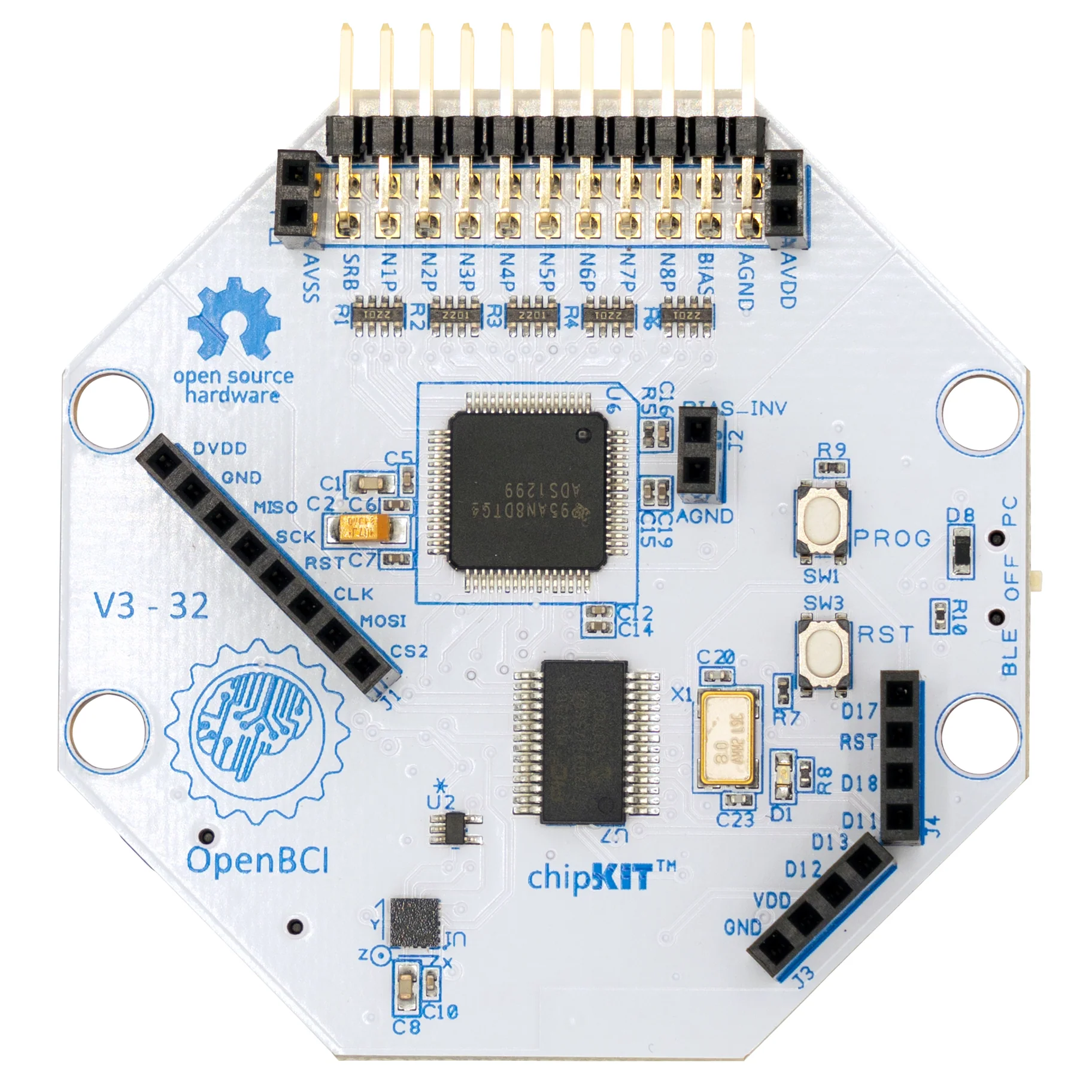

The OpenBCI Cyton Board is an Arduino-compatible, 8-channel neural interface with a 32-bit processor. At its core, the OpenBCI Cyton Board implements the PIC32MX250F128B microcontroller, giving it lots of local memory and fast processing speeds. The board comes pre-flashed with the chipKIT™ bootloader, and the latest OpenBCI firmware. Data is sampled at 250Hz on each of the eight channels.
The OpenBCI Cyton Board can be used to sample brain activity (EEG), muscle activity (EMG), and heart activity (ECG). The board communicates wirelessly to a computer via the the OpenBCI USB dongle using RFDuino radio modules. It can also communicate wirelessly to any mobile device or tablet compatible with Bluetooth Low Energy (BLE).
If you are only interested in using the board for research and don’t care about the hardware, don’t fret! The board and dongle come pre-loaded with the latest firmware, making OpenBCI accessible to researchers and developers with little to no hardware experience. OpenBCI boards have a growing list of data output formats, making them compatible with an expanding collection of existing biofeedback applications and tools.
What comes inside the box?
- (x1) OpenBCI Cyton Board
- (x1) OpenBCI programmable dongle (for bluetooth communication)
- (x4) plastic feet (for board stabilization)
- (x1) Clear board case, Lithium battery and charger (if purchased after May 25th, 2022)
- 3-D print file for case
Research showing OpenBCI Cyton to be comparable to 25x more expensive bioamplifier
- “Comparison of an open-hardware electroencephalography amplifier with medical grade device in brain-computer interface applications”
Want to see more use cases of OpenBCI? Head to our keyword searchable collection of recently published, OpenBCI-based EEG, EMG, and ECG research
Cyton Board Technical Specifications
OpenBCI 32bit Board:
• 8 differential, high gain, low noise input channels
• Compatible with active and passive electrodes
• Texas Instruments ADS1299 ADC (link to datasheet)
• PIC32MX250F128B microcontroller w/chipKIT™ bootloader (50MHz)
• RFduino™ Low Power Bluetooth™ radio (Link to datasheet)
• 24-bit channel data resolution
• Programmable gain: 1, 2, 4, 6, 8, 12, 24
• 3.3V digital operating voltage
• +/-2.5V analog operating voltage
• ~3.3-12V input voltage
• LIS3DH accelerometer (link to datasheet)
• Micro SD card slot
• 5 GPIO pins, 3 of which can be Analog
OpenBCI Dongle:
• RFD22301 radio module from RFdigital™
• FT231X USB-to-serial converter from FTDI
• Can upload code to the OpenBCI board or the dongle
• Fully broken out and pin-compatible w/ RFduino form factor
DO NOT EXCEED A 6V Battery
