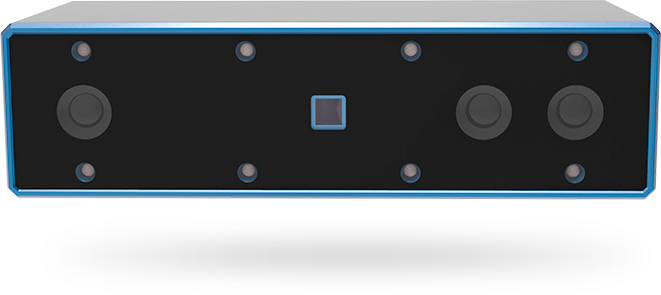

Revopoint 3d chishine 3d Surface HD 300 Industrial 3D Camera
Revopoint 3d chishine 3d Surface HD 300 Industrial 3D Camera
Original price was: ₹699,999.00.₹635,999.00Current price is: ₹635,999.00. (Inc. All Taxes And With GST Input Credit)
Surface HD Industrial 3D Cameras
Surface HD Industrial 3D Cameras can work at distances ranging from 60mm to 2600mm.
At working distance of 60mm-150mm, the maximum accuracy of Surface HD is up to 0.02mm, applicable to the scanning and inspecting of chips and micro parts that require high accuracy.
At working distance of 150mm-1200mm, Surface HD can efficiently perform corresponding tasks such as logistics picking, inspection, feeding and unloading, workpiece alignment and assembly.
At working distance of 1200mm-2600mm, Surface HD can apply to medium and large objects in tasks such as their recognition and inspection, path planning, picking and palletizing.
- SKU:
- Surface HD 300
| Surface HD 300 | |
| 3D Technology | binocular structured light |
| Brightness | Infrared laser |
| Optimal working distance（mm） | 1900±700 |
| Max working distance（mm） | 2600 |
| FOV | H52°x V31° |
| Field of View（mm） | 1176×672@1200 2548×1456@2600 |
| Spatial resolution（mm） | 0.90@12001.99@2600 |
| Point Precision①（mm） | ±2@1900 |
| Housing Material | Aluminum Alloy |
| Appearance②size3（mm） | 345x40x60 |
| weight（Kg） | 0.6 |
| Depth Map Resolution @ Maximum Frame Rate | 1280×800@2fps; |
| 640×400@8fps; | |
| 320×200@10fps | |
| RGB Imaging | 2560×1600@15fps |
| Point cloudoutput | Depth+RGB images, calculated inside cameras |
| Image Alignment | Depth+RGB images |
| Shutter（S） | 1/142 s to 1/10 s |
| Gain | 1x to 16x |
| MinimumAcquisition Time | 112 ms when the shutter time is 1/142 s |
| Power connector | POE (Ethernet inferface power supply) |
| Data connector③ | Ethernet port |
| Power consumption | 5W |
| Environment | Indoor only |
| working temperature | -10℃ ~ 45℃ |
| Storage temperature | -20℃ ~ 70℃ |
| Working humidity | 20% ~ 65%without dew condensation |
| Waterproof④grade | IP65 |
| SDK support operating system | Linux（Ubuntu18.04）；Windows 8/10 |
| Notes | 1.The accuracy is obtained by standard test method in laboratory standard environment, and the user’s specific use environment may affect the accuracy。 |
| 2.Product dimensions can be customized according to user requirements。 | |
| 3.Support IEEE 802.3af standard Poe power supply。 | |
| 4.Only for products with pure network interface. Products that need USB3.0 interface do not support IP65. Please pay attention when purchasing。 | |
