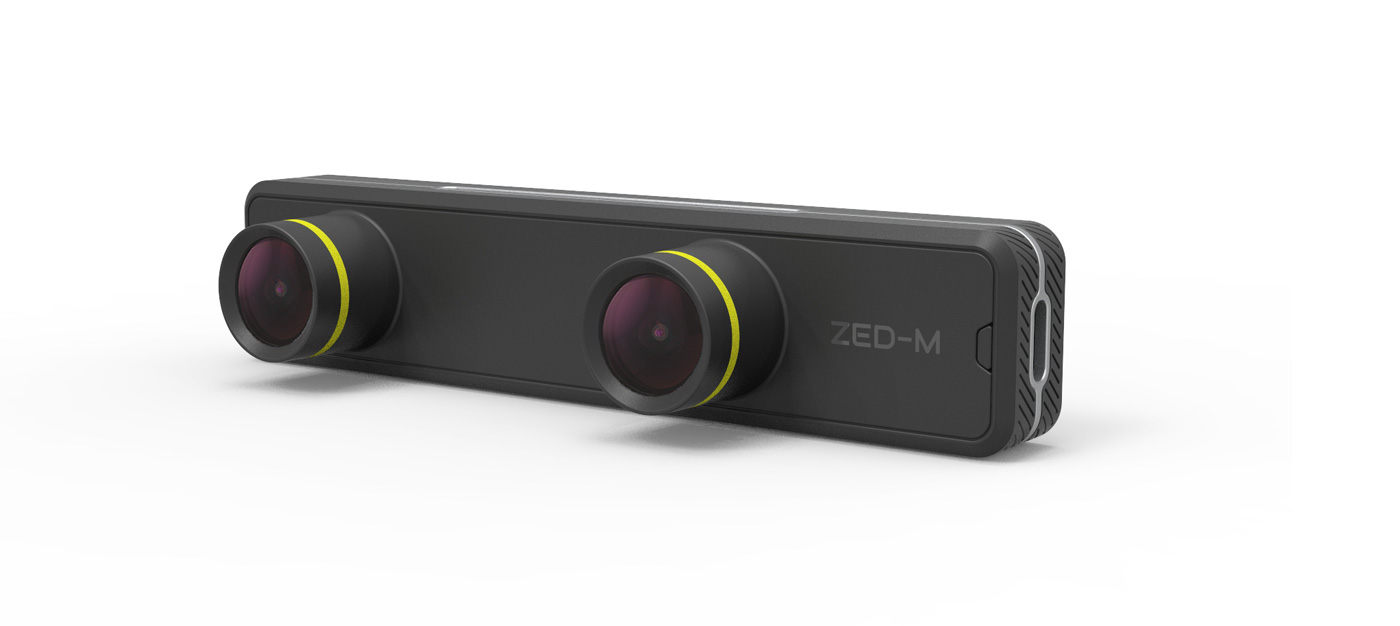

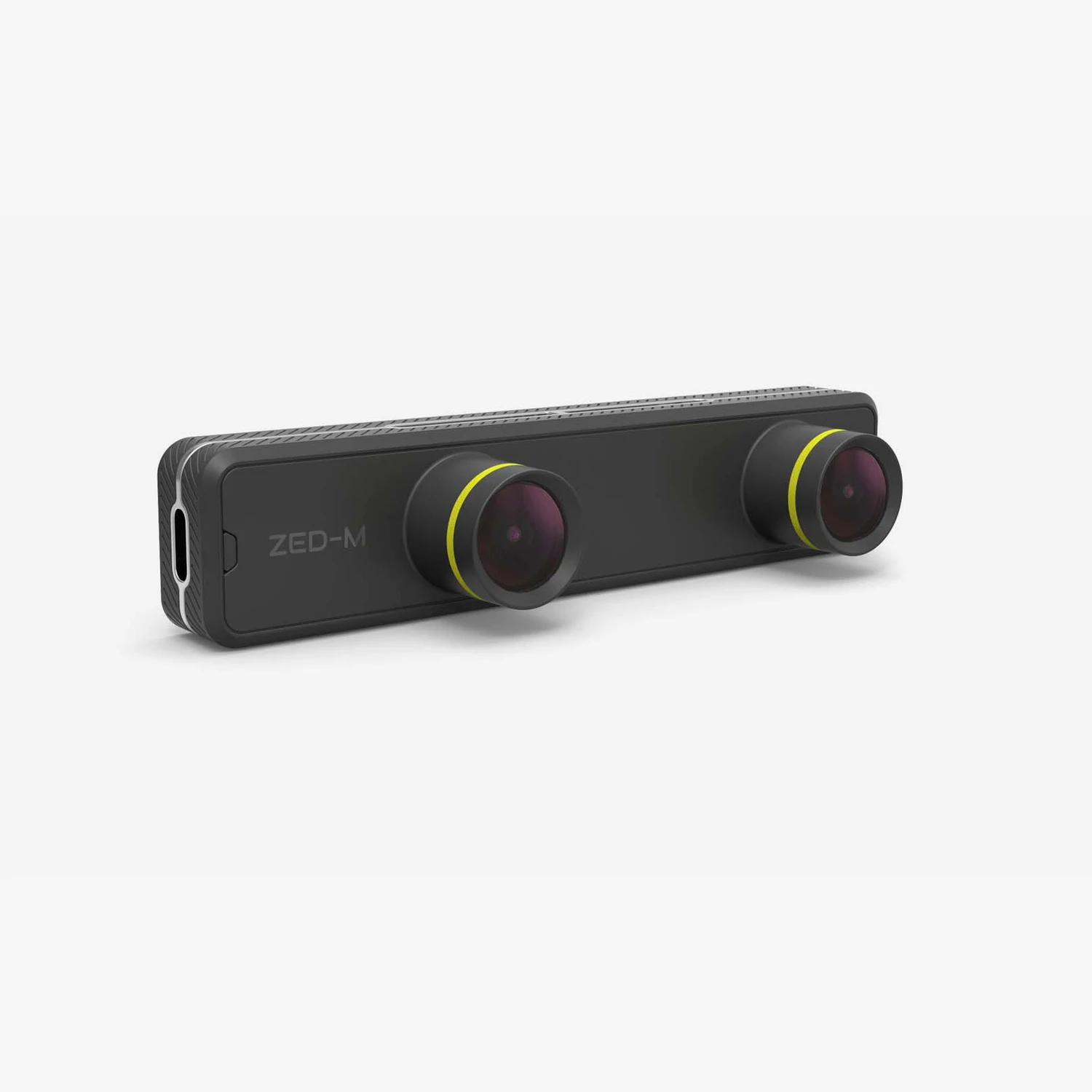

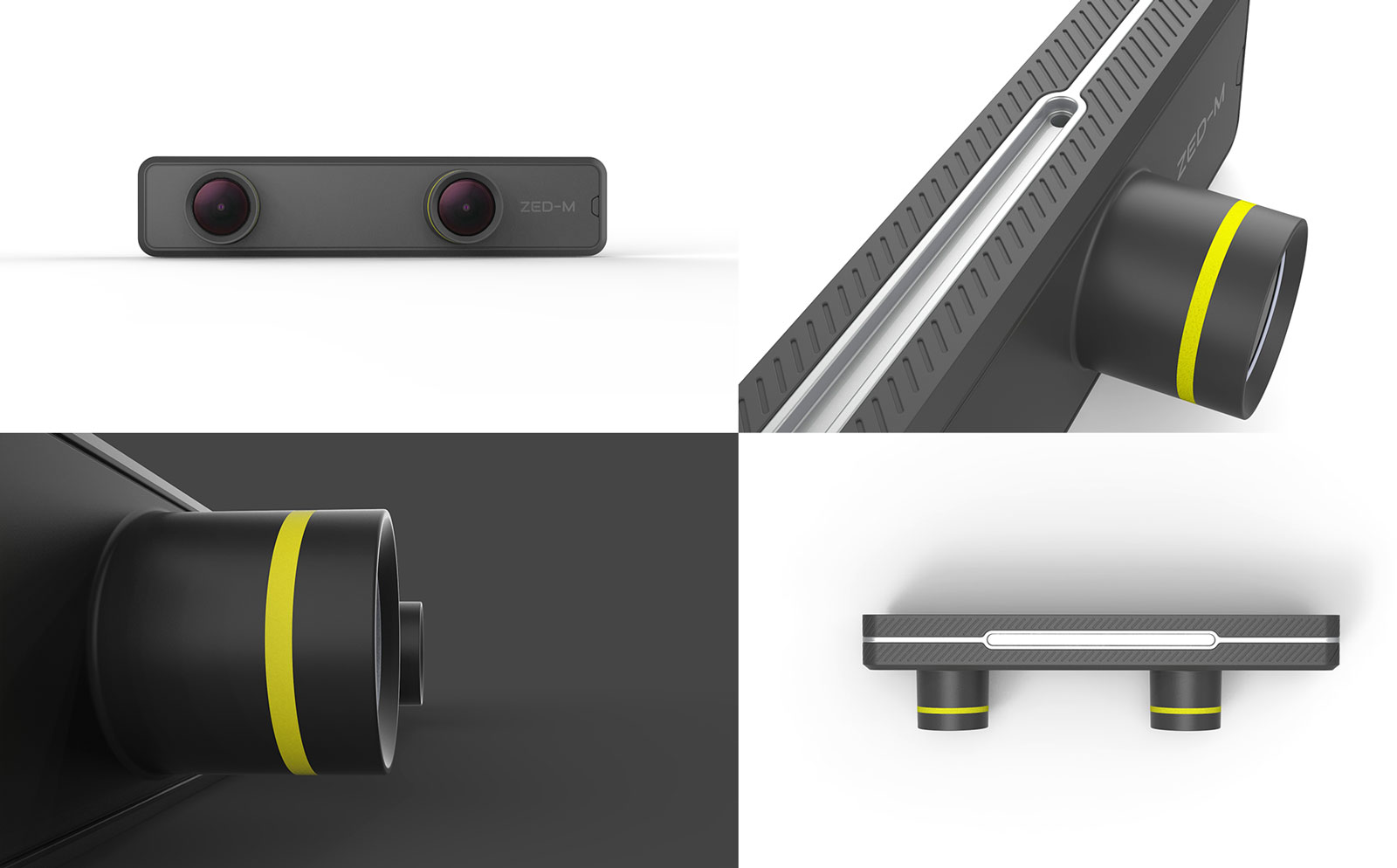

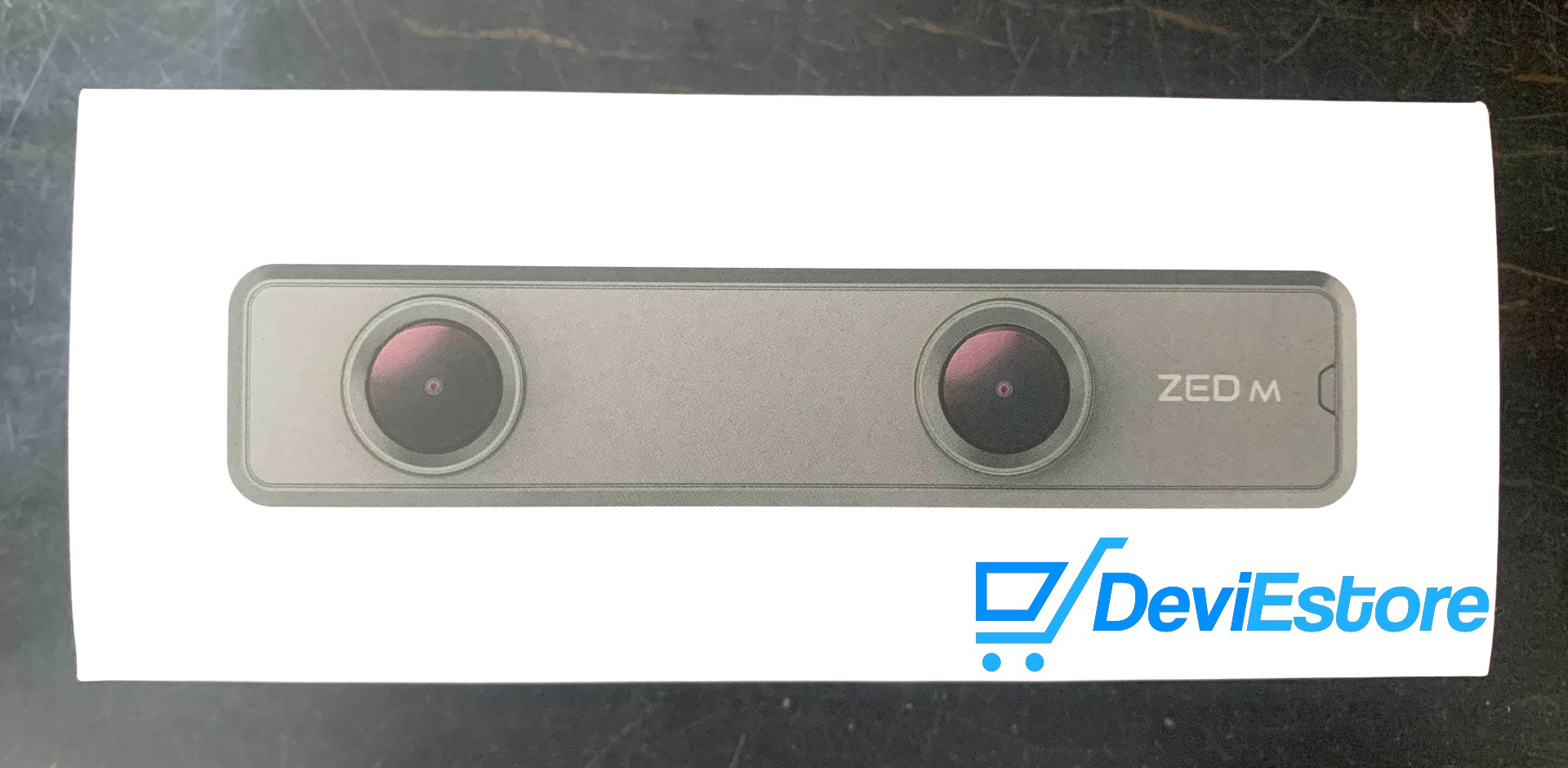

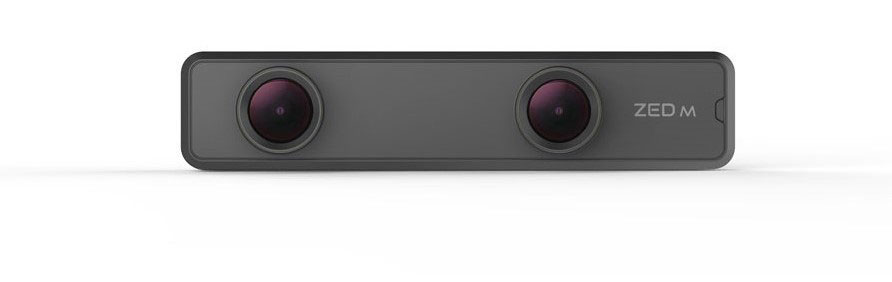

Stereolabs ZED Mini Stereo Camera
Stereolabs ZED Mini Stereo Camera
Original price was: ₹69,999.00.₹64,499.00Current price is: ₹64,499.00. (Inc. All Taxes And With GST Input Credit)
- ZED Mini
- 1.5m USB Type-C to Type-A cable

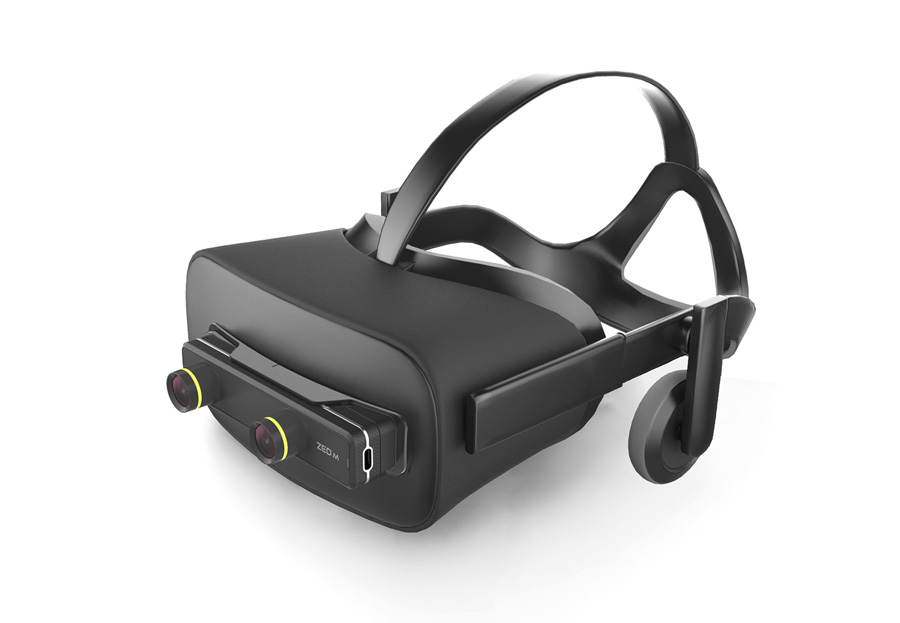

- VR mount
- Built-in 6DoF IMU for accurate motion tracking.
- HD depth sensing with new Ultra mode.
- Small form factor with 6.5cm eye separation.
- Aluminium frame for improved robustness and integration.
- USB Type-C for high-speed data transfer and improved reliability.
- ZED API for application development.
- Dual-core 2.3GHz or faster processor
- 4 GB RAM or more
- USB 3.0
- Quad-core 3.0GHz or faster processor
- 8 GB RAM or more
- NVIDIA GTX 1070 or higher
- Windows 7, 8, 10, Linux
- USB 3.0
- SKU:
- ZED Mini
Technical Specifications
Dimensions
Video Output
| Video Mode | Frames per second | Output Resolution (side by side) |
|---|---|---|
| 2.2K | 15 | 4416×1242 |
| 1080p | 30 | 3840×1080 |
| 720p | 60 | 2560×720 (Stereo Passthrough mode) |
| WVGA | 100 | 1344×376 |
-
Video Recording
Native resolution video encoding in H.264, H.265, Lossless formats (on host)
-
Video Streaming
Stream anywhere over IP
Depth
-
Depth Resolution
Native video resolution
(in Ultra mode) -
Depth FPS
Up to 100Hz
-
Depth Range
0.1 – 15 m (0.32 to 50 ft)
-
Depth FOV
90° (H) x 60° (V) x 100° (D) max.
-
Technology
Stereo Depth Sensing
Motion
-
Motion Sensors
Accelerometer
Gyroscope
Data Rate: 800Hz -
Pose Update Rate
Up to 100Hz
-
Technology
6-DoF visual-inertial stereo SLAM with sensor fusion
-
Pose Drift
Translation: 1.0%
Rotation: 0.013°/m
(without loop correction)
Lens
-
Lens Type
6-elements all-glass dual lens
-
Aperture
ƒ/2.0
-
Field of View
90° (H) x 60° (V) x 100° (D) max.
Image Sensors
-
Sensor Resolution
Dual 4M pixels sensors with large 2-micron pixels
-
Sensor Format
Native 16:9 format for a greater horizontal field of view
-
Sensor Size
1/3” backside illumination sensors with high low-light sensitivity
-
Shutter Sync
Electronic Synchronized Rolling Shutter
-
Camera Controls
Adjust Resolution, Frame rate, Brightness, Contrast, Saturation, Gamma, Sharpness, Exposure and White Balance
Sensors
- AccelerometerGyroscope
Connectivity
-
Connector
USB 3.0 Type-C port
-
Mounting Options
4x M2 thread mounts
VR mount included -
Power
Power via USB 5V / 380mA
-
Operating Temperature
0°C to +45°C (32°F to 113°F)
Size and Weight
-
Dimensions
124.5 x 30.5 x 26.5 mm (4.9 x 1.2 x 1.04’’)
-
Weight
62.9 g (0.14 lb)
Compatible OS
Windows 10, 8, 7
Ubuntu 20, 18, 16
Debian, CentOS
(via Docker)
Jetson L4T
Third-party
Integrations
SDK System Requirements
- Dual-core 2.3GHz or faster processor4 GB RAM or moreNvidia GPU with compute capability > 3.0
Mixed-Reality System Requirements
@ 90 fps
- Quad-core 3.0GHz or faster processor8 GB RAM or moreNVIDIA GTX 1070 or higherWindows 7, 8, 10USB 3.0Oculus Rift, HTC Vive
In the Box
- ZED Mini Stereo camera4m USB Type-C to Type-A cable1.5m USB Type-C to Type-A cableVR mount
