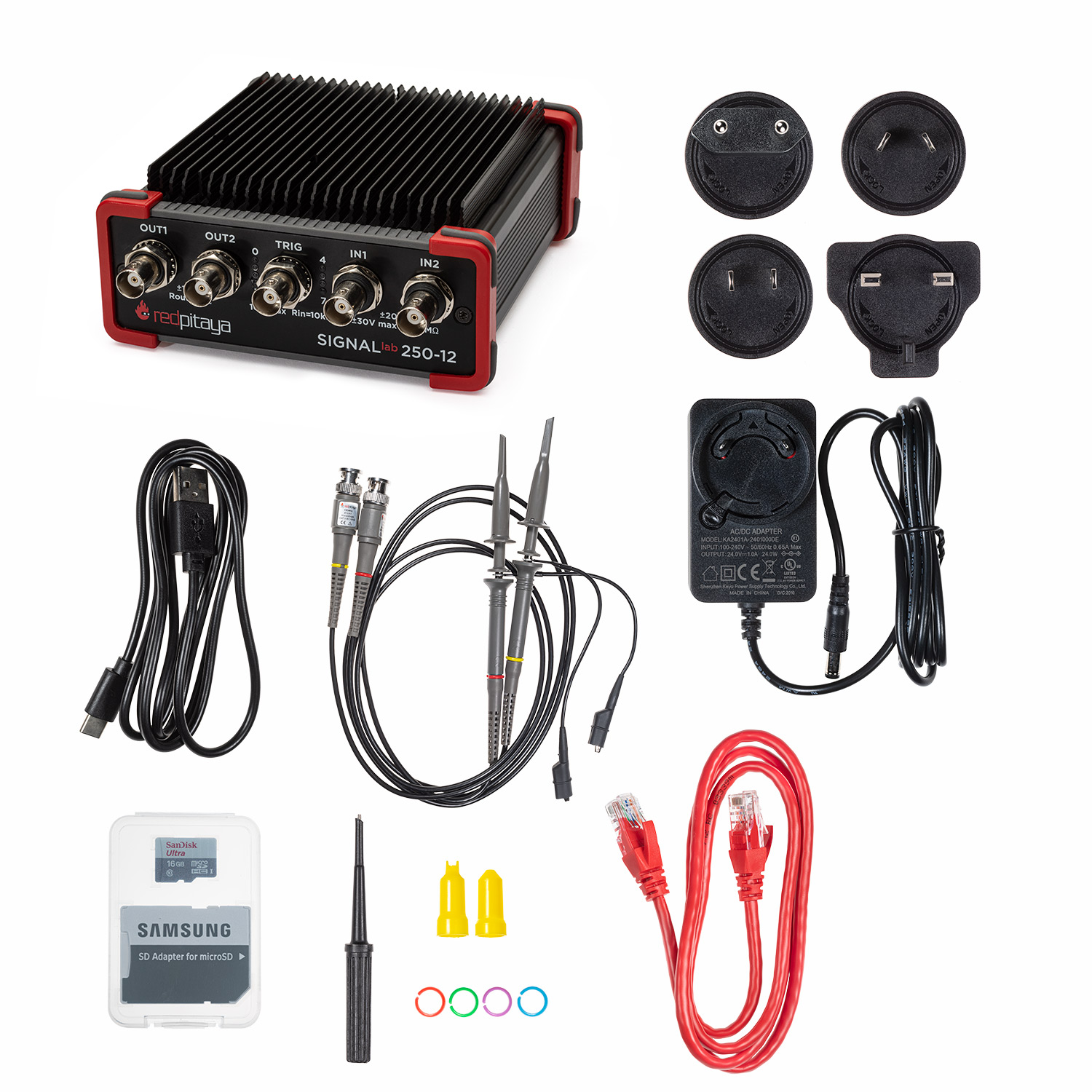

Red Pitaya SIGNALlab 250-12

Red Pitaya SIGNALlab 250-12

274,999.00304,999.00 (Inc. All Taxes And With GST Input Credit)

All SIGNALlab 250-12 products are now equipped with PoE (power over ethernet), which provides the possibility of powering and communicating with SIGNALlab using over one single ethernet cable. It saves time and costs of installation by reducing the time and expense of having electrical power cabling installed and is also safer due to intelligent POE delivery that is designed to protect network equipment from incorrect installation, overloads, or underpowering.

Basic
Processor Dual-Core ARM Cortex-A9 MPCore
FPGA Xilinx Zynq 7020
RAM 1GB (8Gb)
System memory Micro SD up to 32GB
Connectivity
Ethernet 1 Gbit
USB 2x USB 2.0
WIFI Using Wi-Fi dongle
RF inputs
Channels 2
Sample rate 250MS/s
ADC resolution 12 bit
Full scale voltage range ± 1V / ± 20V
Input Coupling AC/DC **
Bandwidth DC-60MHz
Input impedance 1M Ω
RF outputs
Channels 2
Sample rate 250MS/s
Full scale voltage range ± 1V / ± 5V (into 50 ohm load) **, ± 2V / ± 10V (Hi-Z load) **
Load impendance 50 Ω
Shortcut protection Yes
Typical raising/falling time 10V / 17ns
Bandwidth DC-60MHz
Extension connector
Digital IOs 16
Analog inputs 4 channels 0-3.5V 12bit
Analog outputs 4 channels 0-1.8V 12bit
Communication interfaces I2C, SPI, UART
Available voltages – 4V, + 3.3V, + 5V
Synchronisation
Trigger input Through BNC connector
Daisy chain connection Over SATA connection
Ref. clock input Through BNC connector
More
DAC resolution 14 bit
Use case
Weight 1 kg
Dimensions 41 × 14,5 × 9 cm
Type

OEM Kit, Standard Kit
